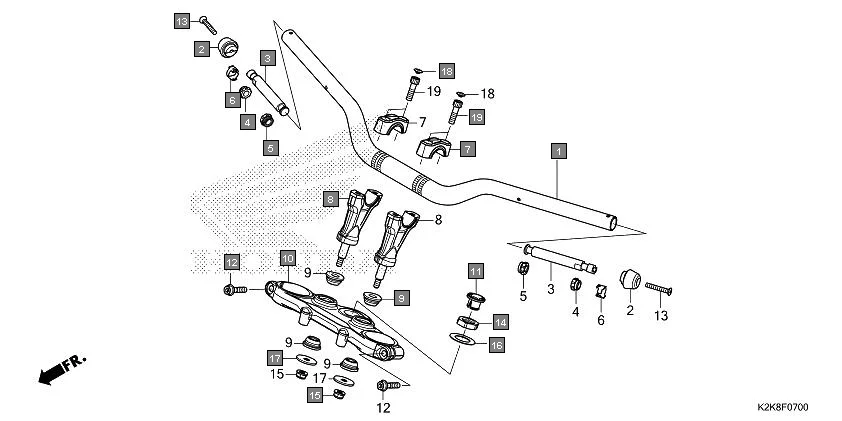

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA CB300F MC300AS · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-K2K-D00ZA | PIPE, STEERING HANDLE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 2 | 53104-K2K-D00 | WEIGHT A, HANDLE | 2 | |
| 3 | 53105-K2K-D00 | WEIGHT B, HANDLE | 2 | |
| 4 | 53106-KR3-770 | RUBBER A, HANDLE WEIGHT | 2 | |
| 5 | 53107-MB6-630 | RUBBER, HANDLE WT. B | 2 | |
| 6 | 53108-MB6-630 | RING, HANDLE WEIGHT SNAP | 2 | |
| 7 | 53131-K0A-DB0ZA | HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC | 2 | |
| 8 | 53132-K2K-D00 | HOLDER, HANDLE PIPE UNDER | 2 | |
| 9 | 53136-K94-T00 | RUBBER, HANDLE CUSHION | 4 | |
| 10 | 53230-K1L-D00ZA | BRIDGE, FORK TOP *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 11 | 53232-K43-D00 | CAP, STEERING NUT | 1 | |
| 12 | 90160-K2K-D00 | BOLT, FLANGE SOCKET, 8X35 | 2 | |
| 13 | 90191-MJE-D40 | SCREW, OVAL, 6X40 | 2 | |
| 14 | 90305-K2K-D00 | NUT, STEERING STEM | 1 | |
| 15 | 90309-KTE-911 | NUT,FLG PT 8MM | 2 | |
| 16 | 90503-KGA-900 | WASHER, STEERING STEM | 1 | |
| 17 | 90535-K26-900 | WASHER, HANDLE UNDER HOLDER | 2 | |
| 18 | 91456-K2K-D00 | CAP, SOCKET BOLT, 8MM | 4 | |
| 19 | 96600-08028-08 | BOLT, SOCKET, 8X28 | 4 | |
