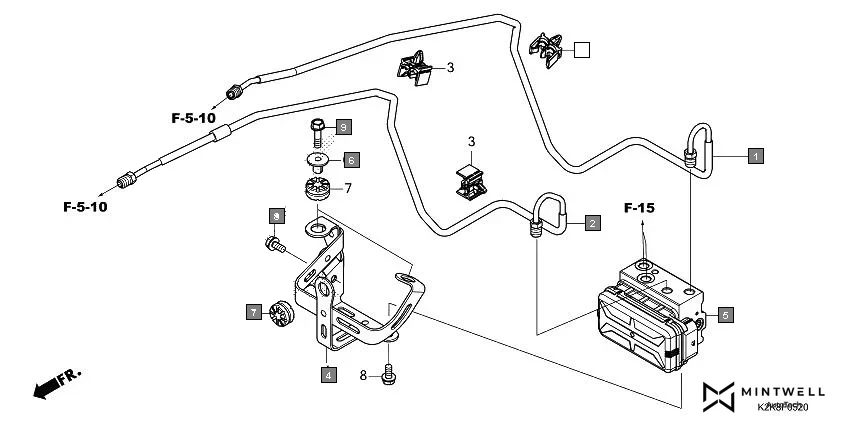

F-5-20 - ABS MODULATOR/BRAKE PIPE
HONDA CB300F MC300AS · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45127-K2K-D00 | PIPE COMP. A, FR. BRAKE | 1 | |
| 2 | 45128-K2K-D00 | PIPE COMP. B, FR. BRAKE | 1 | |
| 3 | 46392-T5A-003 | CLIP, BRAKE PIPE | 3 | |
| 4 | 50245-K2K-D00 | STAY COMP., ABS MODULATOR | 1 | |
| 5 | 57110-K2K-D01 | MODULATOR ASSY. | 1 | |
| 6 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 2 | |
| 7 | 77208-KW7-900 | RUBBER B, SEAT MOUNTING | 3 | |
| 8 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
| 9 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
