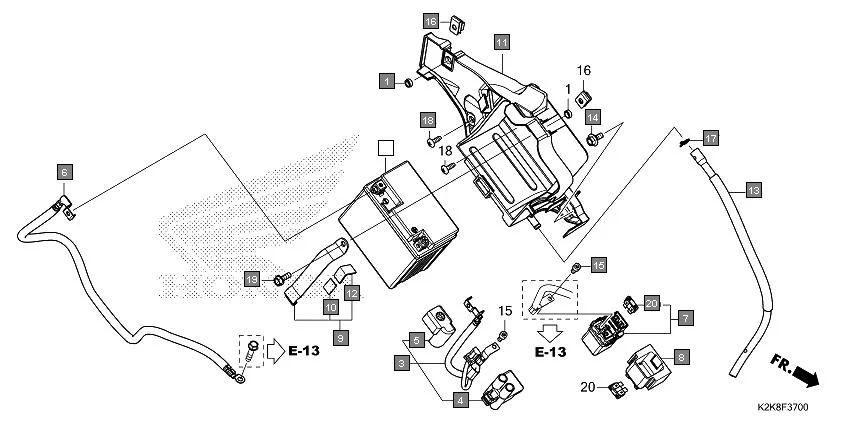

F-37 - BATTERY
HONDA CB300F MC300AS · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 31500-K0L-D11 | BATTERY(YTZ6V)(GS YUASA) | 1 | |
| 3 | 32401-K2K-D00 | CABLE, STARTER MAGNETIC BATTERY | 1 | |
| 4 | 32406-K31-910 | COVER, STARTER MAGNETIC TERMINAL | 1 | |
| 5 | 32412-K2K-D00 | COVER, BATTERY TERMINAL | 1 | |
| 6 | 32601-K31-900 | CABLE, BATTERY EARTH | 1 | |
| 7 | 35850-K2K-D01 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 8 | 35856-K0Z-900 | RUBBER, SHOCK | 1 | |
| 9 | 50381-K2K-D00 | BAND, BATTERY | 1 | |
| 10 | 50382-K2K-D00 | FILM, PROTECTOR | 1 | |
| 11 | 50385-K2K-D00 | CASE, BATTERY | 1 | |
| 12 | 50385-KVS-750 | CUSHION B, BATTERY | 1 | |
| 13 | 50388-K2K-D00 | TUBE, BATTERY TRAY | 1 | |
| 14 | 90111-162-000 | BOLT, FLANGE, 6MM | 1 | |
| 15 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 17 | 90653-KSP-D00 | CLIP, TUBE(B10) | 1 | |
| 18 | 93903-25320 | SCREW, TAPPING, 5 X 16 | 2 | |
| 20 | 98200-32000 | BLADE, FUSE, 20A | 2 | |
