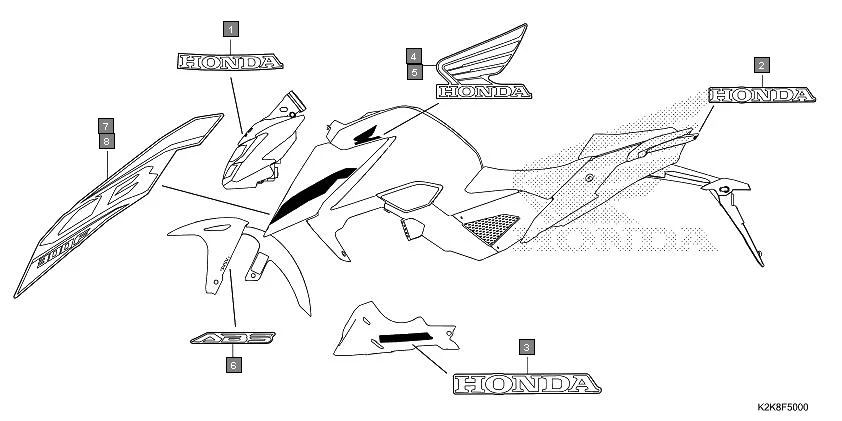

F-50 - MARK/STRIPE
HONDA CB300F MC300AS · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K2K-D00ZA | MARK, HONDA(57MM) *TYPE1* | 1 | |
| 2 | 86102-K1E-D00ZA | MARK, HONDA(60MM) *TYPE1* | 1 | |
| 3 | 86103-K2K-D00ZA | MARK, HONDA(170MM) *TYPE1* | 2 | |
| 4 | 86201-K2K-D00ZA | MARK, R. WING(90MM) *TYPE3* | 1 | |
| 4 | 86201-K2K-D00ZB | MARK, R. WING(90MM) *TYPE2* | 1 | |
| 4 | 86201-K2K-D00ZC | MARK, R. WING(90MM) *TYPE1* | 1 | |
| 5 | 86202-K2K-D00ZA | MARK, L. WING(90MM) *TYPE3* | 1 | |
| 5 | 86202-K2K-D00ZB | MARK, L. WING(90MM) *TYPE2* | 1 | |
| 5 | 86202-K2K-D00ZC | MARK, L. WING(90MM) *TYPE1* | 1 | |
| 6 | 86611-K43-D20ZA | MARK, ABS *TYPE3* | 1 | |
| 6 | 86611-K43-D20ZC | MARK, ABS *TYPE1* (R. SIDE ONLY) | 1 | |
| 7 | 86641-K2K-D00ZA | STRIPE, R. SHROUD *TYPE2* | 1 | |
| 7 | 86641-K2K-D00ZB | STRIPE, R. SHROUD *TYPE1* | 1 | |
| 8 | 86642-K2K-D00ZA | STRIPE, L. SHROUD *TYPE2* | 1 | |
| 8 | 86642-K2K-D00ZB | STRIPE, L. SHROUD *TYPE1* | 1 | |
