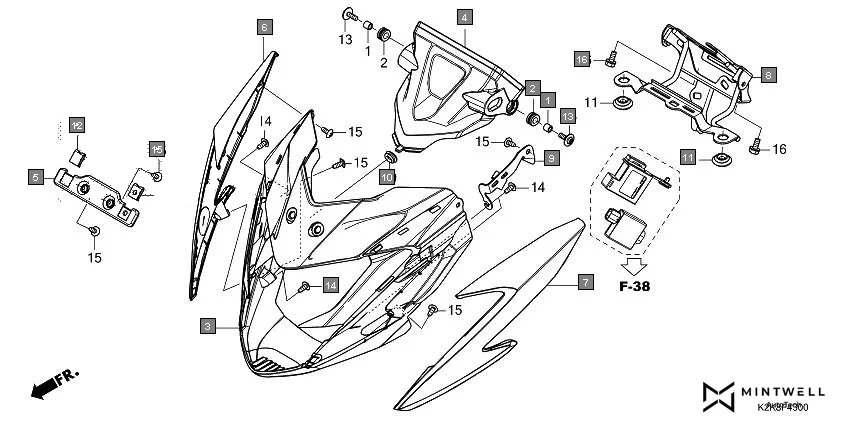

F-43 - FRONT COWL
HONDA CB300F MC300AS · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18295-K2K-D00 | COLLAR, 5MM | 2 | |
| 2 | 19639-GBC-000 | RUBBER , MOUNT | 2 | |
| 3 | 61300-K2K-D00ZA | COWL SET, FR. CENTER(WL) *TYPE1* | 1 | |
| 4 | 61302-K2K-D00 | COVER, METER | 1 | |
| 5 | 61303-K2K-D00 | BRACKET, FR. NUMBER PLATE | 1 | |
| 6 | 61305-K2K-D00ZA | COVER, R. FR. SIDE *R393* SPORTS RED 2 | 1 | |
| 6 | 61305-K2K-D00ZB | COVER, R. FR. SIDE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 6 | 61305-K2K-D00ZC | COVER, R. FR. SIDE *B227M* MAT MARVEL BLUE METALLIC | 1 | |
| 7 | 61306-K2K-D00ZA | COVER, L. FR. SIDE *R393* SPORTS RED 2 | 1 | |
| 7 | 61306-K2K-D00ZB | COVER, L. FR. SIDE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 61306-K2K-D00ZC | COVER, L. FR. SIDE *B227M* MAT MARVEL BLUE METALLIC | 1 | |
| 8 | 61312-K2K-D00 | STAY, FR. COWL UPPER | 1 | |
| 9 | 61321-K2K-D00 | STAY, USB CHAGER | 1 | |
| 10 | 64413-KSS-C00 | GROMMET, BODY COVER | 1 | |
| 11 | 83551-376-000 | GROMMET, SIDE COVER | 2 | |
| 12 | 90320-KTE-600 | NUT, SPRING, 5MM | 2 | |
| 13 | 93894-05016-07 | SCREW-WASHER, 5X16 | 2 | |
| 14 | 93903-24320 | SCREW, TAPPING, 4X12 | 4 | |
| 15 | 93903-25220 | SCREW, TAPPING, 5X12 | 6 | |
| 16 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
