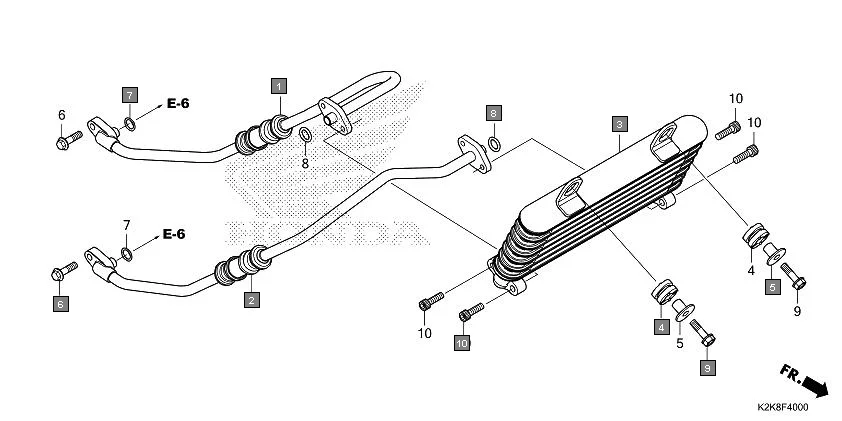

F-40 - OIL COOLER
HONDA CB300F MC300AS · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15510-K2K-D00 | HOSE A, OIL | 1 | |
| 2 | 15520-K2K-D00 | HOSE B, OIL | 1 | |
| 3 | 15600-K2K-D01 | COOLER COMP., OIL | 1 | |
| 4 | 19051-K2K-D00 | RUBBER, MOUNTING | 2 | |
| 5 | 19052-K2K-D00 | COLLAR, OIL COOLER MOUNTING | 2 | |
| 7 | 91305-K95-AA1 | O-RING, 9.8X1.9 | 2 | |
| 8 | 91351-K2K-D01 | O-RING, 10X2.6 | 2 | |
| 9 | 95701-06022-07 | BOLT,FLANGE,6 X 22 | 2 | |
| 10 | 96600-06020-00 | BOLT, SOCKET, 6X20 | 4 | |
