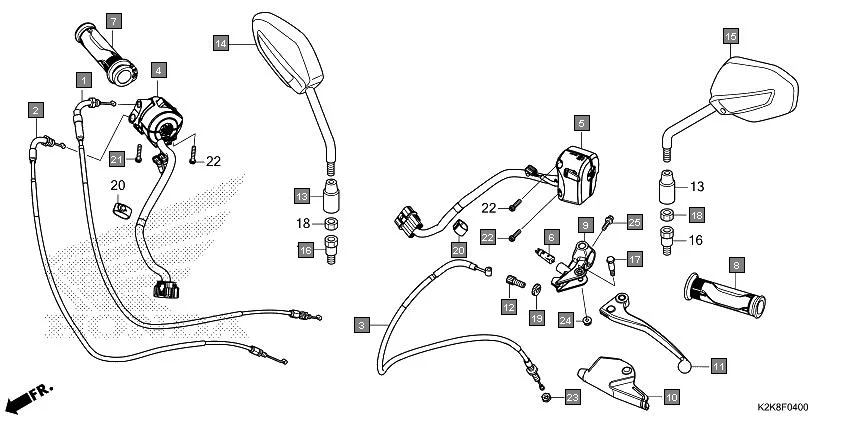

F-4 - HANDLE LEVER/SWITCH/CABLE/MIRROR
HONDA CB300F MC300AS · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K2K-D01 | CABLE COMP. A, THROTTLE | 1 | |
| 2 | 17920-K2K-D01 | CABLE COMP. B, THROTTLE | 1 | |
| 3 | 22870-K2K-D01 | CABLE COMP., CLUTCH | 1 | |
| 4 | 35150-K2K-D01 | SWITCH ASSY., STARTER & ENGINE STOP | 1 | |
| 5 | 35200-K2K-D11 | SWITCH ASSY., WINKER | 1 | |
| 5 | 35200-K2K-D01 | SWITCH ASSY., WINKER | 1 | |
| 6 | 35330-KYJ-611 | SWITCH ASSY., CLUTCH | 1 | |
| 7 | 53140-KYJ-900 | GRIP COMP., THROTTLE | 1 | |
| 8 | 53166-KYJ-900 | GRIP, L. HANDLE | 1 | |
| 9 | 53172-K2K-D00 | BRACKET, L. HANDLE LEVER | 1 | |
| 10 | 53174-KVS-600 | COVER, L. HANDLE LEVER | 1 | |
| 11 | 53178-K2K-D00 | LEVER, L. STEERING HANDLE | 1 | |
| 12 | 53192-268-000 | BOLT, WIRE ADJUSTING | 1 | |
| 13 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 14 | 88210-K38-941ZA | MIRROR COMP., R.*NH1* BLACK | 1 | |
| 15 | 88220-K38-941ZA | MIRROR COMP., L. *NH1*BLACK | 1 | |
| 16 | 90103-K38-940 | BOLT, ADAPTER, 10MM | 2 | |
| 17 | 90114-K2K-D00 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 18 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 19 | 90321-315-670 | NUT, FIXING | 1 | |
| 20 | 90652-K0Z-900 | BAND, RUBBER(60) | 2 | |
| 21 | 93892-05020-07 | SCREW, WASHER, 5X20 | 1 | |
| 22 | 93892-05025-07 | SCREW, WASHER, 5X25 | 3 | |
| 23 | 94002-08000-0S | NUT HEX.8 MM | 1 | |
| 25 | 95701-06025-07 | BOLT, FLANGE, 6X25 | 1 | |
