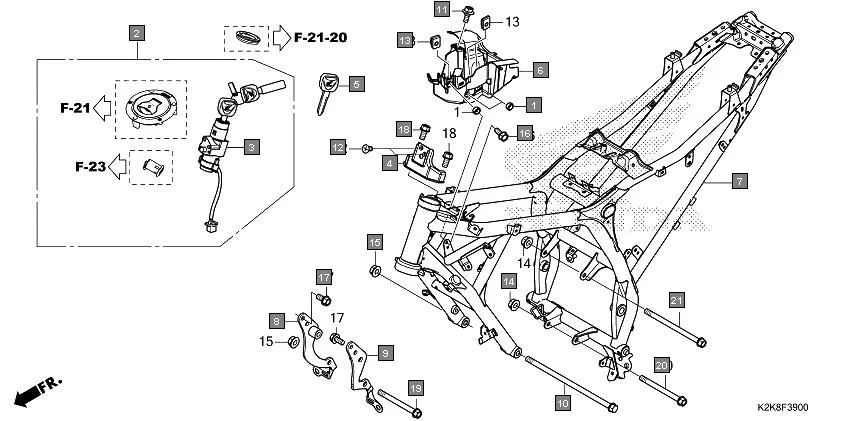

F-39 - FRAME BODY/KEY SET
HONDA CB300F MC300AS · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 35010-K2K-D00 | KEY SET | 1 | |
| 3 | 35100-K2K-D01 | SWITCH ASSY., COMBINATION & LOCK | 1 | |
| 4 | 35105-K2K-D00 | STAY COMP., COMBINATION SWITCH | 1 | |
| 5 | 35121-K74-N00 | KEY, BLANK | 1 | |
| 6 | 38775-K2K-D00 | BOX, ELECTRIC CONTROL UNIT | 1 | |
| 7 | 50100-K2K-D00 | BODY COMP., FRAME | 1 | |
| 8 | 50352-K2K-D00 | PLATE COMP., R. FR. ENGINE HANGER | 1 | |
| 9 | 50353-K2K-D00 | PLATE COMP., L. FR. ENGINE HANGER | 1 | |
| 10 | 90101-K31-900 | BOLT, FLANGE, 10X235.5 | 1 | |
| 12 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 14 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
| 15 | 94050-10070 | NUT,FLANGE,10MM | 2 | |
| 16 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 1 | |
| 17 | 95701-08016-07 | BOLT FLANGE, 8 X 16 | 2 | |
| 18 | 95701-08016-08 | BOLT, FLANGE, 8X16 | 2 | |
| 19 | 95801-10100-07 | BOLT, FLANGE, 10X100 | 1 | |
| 20 | 95801-10110-08 | BOLT, FLANGE, 10X110 | 1 | |
| 21 | 95801-10150-08 | BOLT, FLANGE, 10X150 | 1 | |
