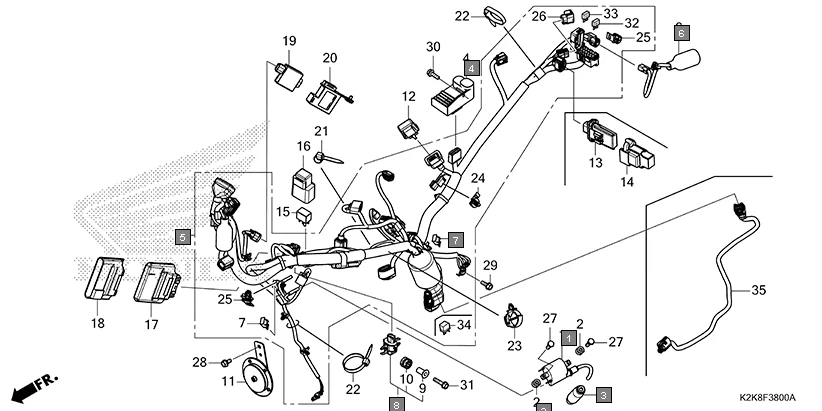

F-38 - WIRE HARNESS
HONDA CB300F MC300AS · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30500-K2K-D01 | COIL ASSY., IGNITION | 1 | |
| 2 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 3 | 30700-K2K-D01 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 4 | 31600-K2K-D01 | RECTIFIER COMP., REGULATE | 1 | |
| 5 | 32100-K2K-D10 | HARNESS, WIRE | 1 | |
| 5 | 32100-K2K-D00 | HARNESS, WIRE | 1 | |
| 6 | 32105-K2K-D00 | SUB HARNESS, RR. | 1 | |
| 7 | 32146-SJ4-003 | DIODE(3P) | 2 | |
| 8 | 35160-K2K-D01 | SENSOR ASSY., BANK ANGLE | 1 | |
| 9 | 35162-KRE-G00 | COLLAR | 2 | |
| 10 | 35163-KRE-G00 | GROMMET | 2 | |
| 11 | 38110-K2K-D01 | HORN COMP.(HIGH) | 1 | |
| 12 | 38301-K1L-D01 | RELAY COMP., WINKER(L.E.D.) | 1 | |
| 13 | 38350-K0Z-914 | BLUETOOTH UNIT | 1 | |
| 14 | 38351-K2K-D10 | CUSHION, BLUETOOTH UNIT | 1 | |
| 15 | 38501-KVZ-631 | RELAY ASSY., POWER (MICRO ISO 4P)(MITSUBA) | 1 | |
| 16 | 38506-K2K-D00 | SUSPENSION, POWER RELAY | 1 | |
| 17 | 38770-K2K-D01 | PGM-FI UNIT | 1 | |
| 18 | 38771-K2K-D00 | CUSHION, PGM-FI UNIT | 1 | |
| 19 | 38940-MKR-D11 | CHARGER UNIT, USB(TYPE-C) | 1 | |
| 20 | 38941-K2K-D00 | CUSHION, USB CHARGER | 1 | |
| 21 | 90650-KV6-003 | BAND, WIRE, 95MM | 1 | |
| 22 | 90651-KV6-003 | BAND WIRE | 2 | |
| 23 | 90690-K2K-D01 | STRAP, WIRE HARNESS | 1 | |
| 24 | 91535-STK-003 | CLIP, COUPLER(DARK BLUE) | 1 | |
| 25 | 91535-TA0-003 | CLIP, COUPLER(DARK BROWN) | 2 | |
| 26 | 91771-MKK-H11 | CAP, DUMMY(6P)(RED) | 1 | |
| 27 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 30 | 95701-06018-00 | BOLT FLANGE 6X18 | 1 | |
| 31 | 95701-06028-00 | BOLT, FLANGE, 6X28 | 2 | |
| 32 | 98200-40750 | FUSE, MINI(7.5A) | 5 | |
| 33 | 98200-42000 | FUSE, MINI(20A) | 3 | |
