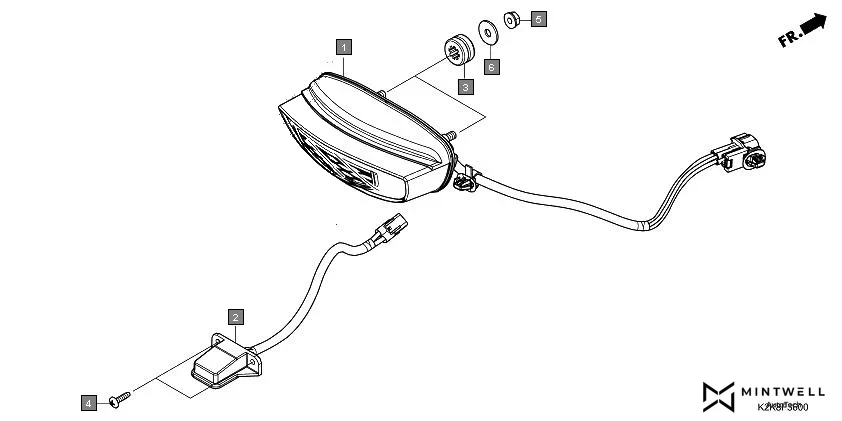

F-36 - TAILLIGHT/LICENSE LIGHT
HONDA CB300F MC300AS · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33701-K2K-D01 | LIGHT ASSY., TAIL & STOP | 1 | |
| 2 | 33720-K2K-D01 | LIGHT ASSY., LICENSE | 1 | |
| 3 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 2 | |
| 4 | 93903-24480 | SCREW, TAPPING, 4X16 | 2 | |
| 6 | 94103-06000 | WASHER PLAIN,6MM | 2 | |
