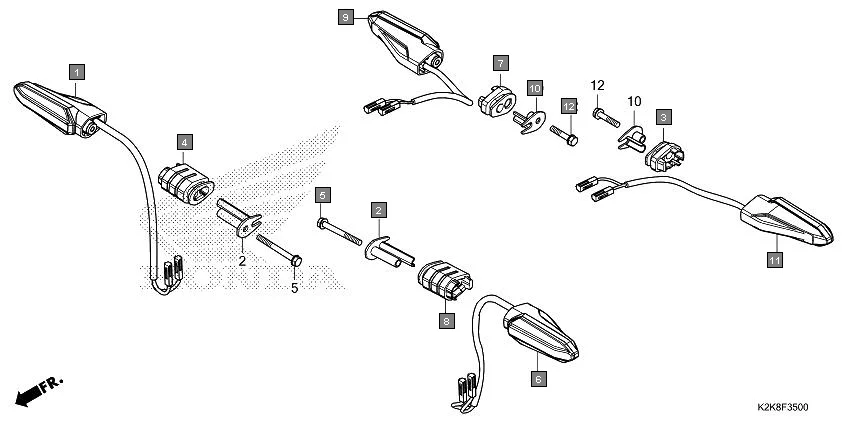

F-35 - WINKER
HONDA CB300F MC300AS · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-K2K-D01 | WINKER ASSY., R. FR. | 1 | |
| 2 | 33411-K2K-D00 | COLLAR, WINKER | 2 | |
| 3 | 33412-K3B-H00 | RUBBER, R. WINKER MOUNTING | 1 | |
| 4 | 33412-K2K-D00 | RUBBER, R. WINKER MOUNTING | 1 | |
| 5 | 33413-K2K-D00 | BOLT-WASHER, 5X47 | 2 | |
| 6 | 33450-K2K-D01 | WINKER ASSY., L. FR. | 1 | |
| 7 | 33452-K3B-H00 | RUBBER, L. WINKER MOUNTING | 1 | |
| 8 | 33452-K2K-D00 | RUBBER, L. WINKER MOUNTING | 1 | |
| 9 | 33600-K2K-D01 | WINKER ASSY., R. RR. | 1 | |
| 10 | 33611-K1L-D00 | COLLAR, WINKER | 2 | |
| 11 | 33650-K2K-D01 | WINKER ASSY., L. RR. | 1 | |
| 12 | 93411-05025-00 | BOLT-WASHER, 5X25 | 2 | |
