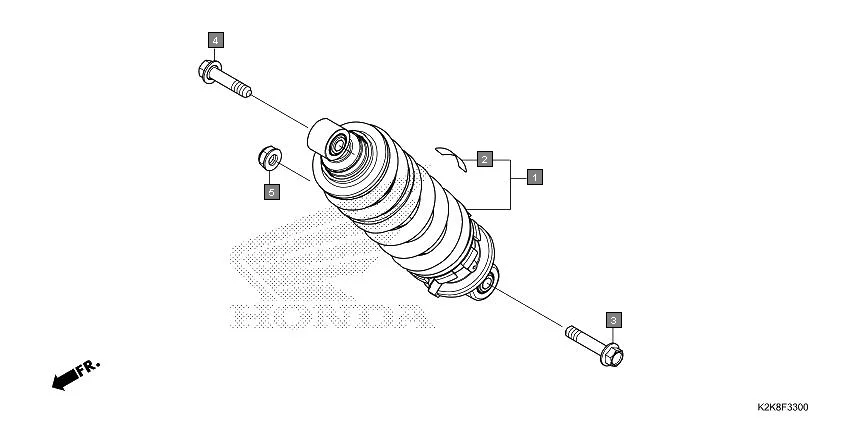

F-33 - REAR CUSHION
HONDA CB300F MC300AS · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K2K-D01 | CUSHION ASSY., RR.(SHOWA) | 1 | |
| 2 | 87516-MBL-610 | LABEL, RR. DAMPER | 1 | |
| 3 | 90151-KSP-900 | BOLT, FLANGE, 10X48 | 1 | |
| 4 | 90182-K2K-D00 | BOLT, FLANGE, 10X43 | 1 | |
| 5 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
