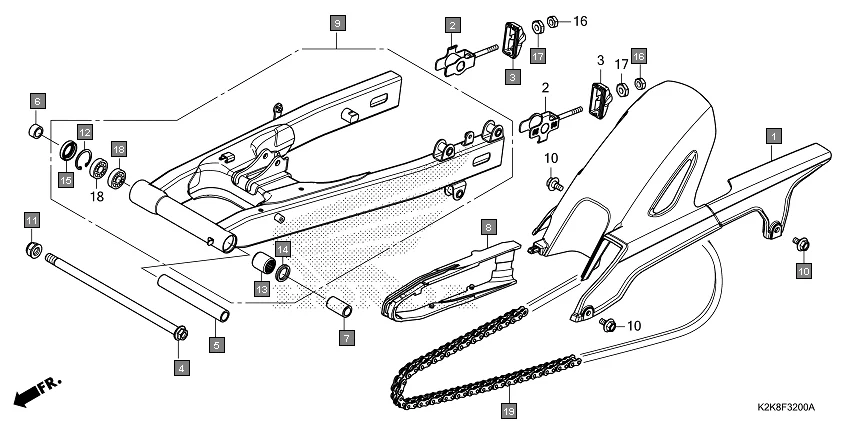

F-32 - SWINGARM
HONDA CB300F MC300AS · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-K2K-D00 | CASE, DRIVE CHAIN | 1 | |
| 2 | 40543-K2K-D00 | ADJUSTER COMP., CHAIN | 2 | |
| 3 | 40546-K2K-D00ZA | CAP, SWINGARM END *NH168M* VERNIER GRAY METALLIC | 2 | |
| 4 | 52101-K2K-D00 | BOLT, SWINGARM PIVOT | 1 | |
| 5 | 52102-ML4-000 | COLLAR, PIVOT DISTANCE | 1 | |
| 6 | 52105-MJ0-000 | COLLAR B, RR. FORK PIVOT | 1 | |
| 7 | 52106-KYJ-900 | COLLAR, PIVOT | 1 | |
| 8 | 52170-K2K-D00 | SLIDER, CHAIN | 1 | |
| 9 | 52200-K2K-D00ZA | SWINGARM SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 11 | 90305-KVN-901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 | |
| 12 | 90653-K0Z-900 | CIRCLIP, INTERNAL, 35MM | 1 | |
| 13 | 91071-MJ0-003 | BEARING, NEEDLE, 22X29X30(NTN) | 1 | |
| 14 | 91205-965-003 | OIL SEAL, 22X31X5(ARAI) | 1 | |
| 15 | 91213-MB2-003 | DUST SEAL, 22X35X7(ARAI) | 1 | |
| 17 | 94031-08000 | NUT, HEX., 8MM | 2 | |
| 18 | 96100-62020-10 | BEARING, RADIAL BALL, 6202 | 2 | |
| 19 | 40530-K2K-D11 | CHAIN, DRIVE (DID) (520VF4-110LE) | 1 | |
