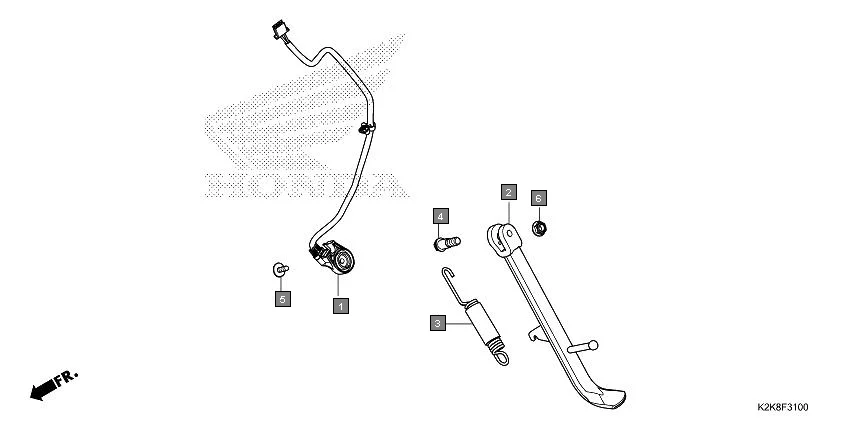

F-31 - SIDE STAND
HONDA CB300F MC300AS · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35700-K31-601 | SWITCH ASSY., SIDE STAND | 1 | |
| 2 | 50530-K2K-D00 | BAR COMP., SIDE STAND | 1 | |
| 3 | 50535-K2K-D00 | SPRING ASSY., SIDE STAND | 1 | |
| 4 | 90108-MK6-670 | BOLT, SIDE STAND PIVOT | 1 | |
| 5 | 90132-KYJ-960 | BOLT, SPECIAL, 6X16 | 1 | |
| 6 | 90304-K2K-D00 | NUT, SIDE STAND | 1 | |
