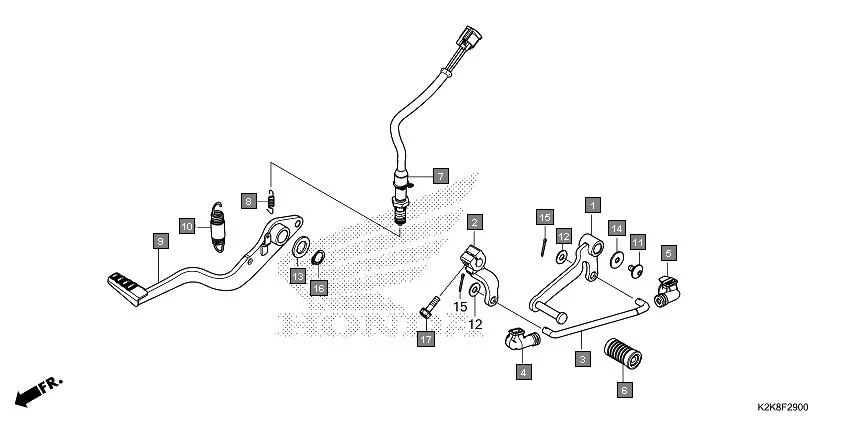

F-29 - PEDAL
HONDA CB300F MC300AS · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-K2K-D00 | PEDAL COMP., GEAR CHANGE | 1 | |
| 2 | 24711-K2K-D00 | ARM COMP., GEAR CHANGE | 1 | |
| 3 | 24720-K2K-D00 | ROD, TIE | 1 | |
| 4 | 24721-K31-900 | COVER, CHANGE PEDAL(A) | 1 | |
| 5 | 24722-K31-900 | COVER, CHANGE PEDAL(B) | 1 | |
| 6 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 1 | |
| 7 | 35350-K2K-D01 | SWITCH ASSY., RR. STOP | 1 | |
| 8 | 35357-HP0-A00 | SPRING, STOP SWITCH | 1 | |
| 9 | 46500-K2K-D00 | PEDAL COMP., RR. BRAKE | 1 | |
| 10 | 46515-K2K-D00 | SPRING ASSY., BRAKE PEDAL | 1 | |
| 11 | 90132-K2K-D00 | SCREW, PAN, 6X10 | 1 | |
| 12 | 90502-K43-900 | WASHER, PLAIN, 7MM | 2 | |
| 13 | 90557-230-000 | WASHER, 15.2X25 | 1 | |
| 14 | 94103-06700 | WASHER, PLAIN, 6 MM | 1 | |
| 15 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 16 | 94511-15000 | CIRCLIP, EXTERNAL, 15MM | 1 | |
| 17 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
