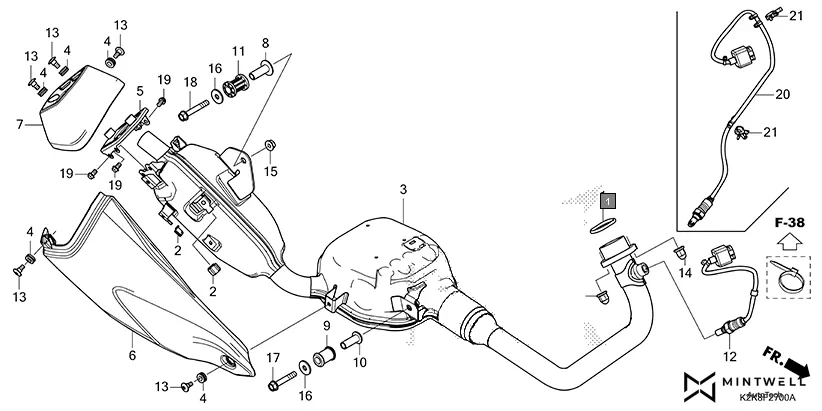

F-27 - EXHAUST MUFFLER
HONDA CB300F MC300AS · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-MM5-860 | GASKET, EX. PIPE | 1 | |
| 2 | 18293-MCA-A20 | RUBBER, PROTECTOR PACKING | 2 | |
| 3 | 18300-K2K-D00 | MUFFLER COMP., EX. | 1 | |
| 4 | 18345-K15-920 | RUBBER, MOUNTING | 5 | |
| 5 | 18350-K2K-D00 | COVER COMP., TAIL CAP INNER | 1 | |
| 6 | 18355-K2K-D00 | COVER, MUFFLER | 1 | |
| 7 | 18356-K2K-D00 | COVER, TAIL CAP | 1 | |
| 8 | 18420-K0A-DB0 | COLLAR, MUFFLER MOUNTING | 1 | |
| 9 | 18421-K2K-D00 | RUBBER, MUFFLER MOUNTING | 1 | |
| 10 | 18422-K2K-D00 | COLLAR, MUFFLER MOUNTING | 1 | |
| 11 | 18423-K2K-D00 | RUBBER, MUFFLER MOUNTING | 1 | |
| 12 | 36531-K2K-D01 | SENSOR, OXYGEN | 1 | |
| 13 | 90113-K15-920 | SCREW, PAN, 6X14 | 5 | |
| 14 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 15 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 16 | 94103-08000 | WASHER, PLAIN, 8MM | 2 | |
| 17 | 95701-08045-00 | BOLT, FLANGE 8 X45 | 1 | |
| 18 | 95701-08050-00 | BOLT, FLANGE, 8 X 50 | 1 | |
| 19 | 96001-06010-00 | BOLT FLANGE SH. 6×10 | 3 | |
