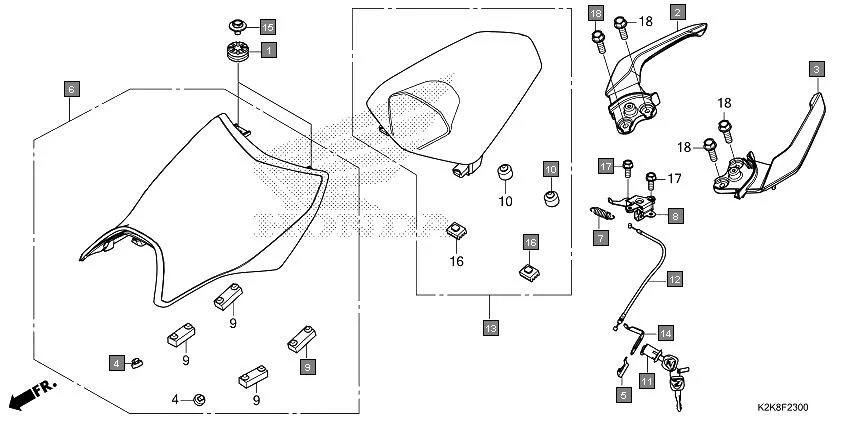

F-23 - SEAT/REAR GRIP
HONDA CB300F MC300AS · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33705-KW7-900 | RUBBER A TAIL LIGHT MOUNT | 2 | |
| 2 | 50315-K2K-D00ZA | GRIP, R. RR. *NHC55M* MAT MASSIVE GRAY METALLIC | 1 | |
| 3 | 50325-K2K-D00ZA | GRIP, L. RR. *NHC55M* MAT MASSIVE GRAY METALLIC | 1 | |
| 4 | 50352-GS6-000 | RUBBER, LINK STOPPER | 2 | |
| 5 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 6 | 77100-K2K-D01 | SEAT COMP., SINGLE | 1 | |
| 7 | 77151-K2K-D00 | SPRING, SEAT LOCK | 1 | |
| 8 | 77160-K2K-D00 | BRACKET COMP., SEAT LOCK | 1 | |
| 9 | 77205-K45-N00 | RUBBER, SEAT SETTING | 4 | |
| 10 | 77206-KGA-K00 | RUBBER, SEAT SETTING | 2 | |
| 11 | 77225-K2K-D01 | LOCK ASSY., SEAT | 1 | |
| 12 | 77240-K2K-D01 | CABLE, SEAT LOCK | 1 | |
| 13 | 77300-K2K-D01 | SEAT COMP., PILLION | 1 | |
| 14 | 80206-K2K-D00 | STAY, SEAT LOCK KEY | 1 | |
| 15 | 93404-06010-00 | BOLT-WASHER, 6X10 | 2 | |
| 16 | 95011-61000 | RUBBER A, STAND STOPPER | 2 | |
| 18 | 95701-08025-08 | BOLT, FLANGE, 8X25 | 4 | |
