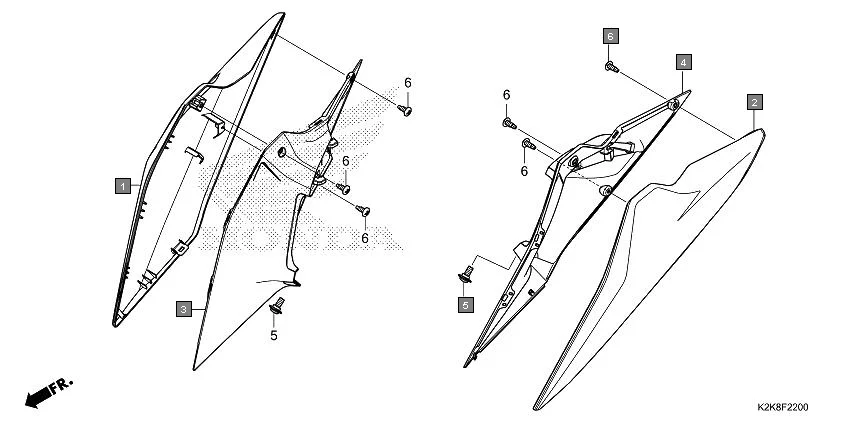

F-22 - SHROUD
HONDA CB300F MC300AS · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64210-K2K-D00ZA | SHROUD SET, R.(WL) *TYPE2* | 1 | |
| 1 | 64210-K2K-D00ZB | SHROUD SET, R.(WL) *TYPE1* | 1 | |
| 2 | 64220-K2K-D00ZA | SHROUD SET, L.(WL) *TYPE2* | 1 | |
| 2 | 64220-K2K-D00ZB | SHROUD SET, L.(WL) *TYPE1* | 1 | |
| 3 | 64230-K2K-D00 | SHROUD B, R. FUEL TANK | 1 | |
| 4 | 64240-K2K-D00 | SHROUD B, L. FUEL TANK | 1 | |
| 5 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
| 6 | 93903-24380 | SCREW TAPPING, 4 X 12 | 6 | |
