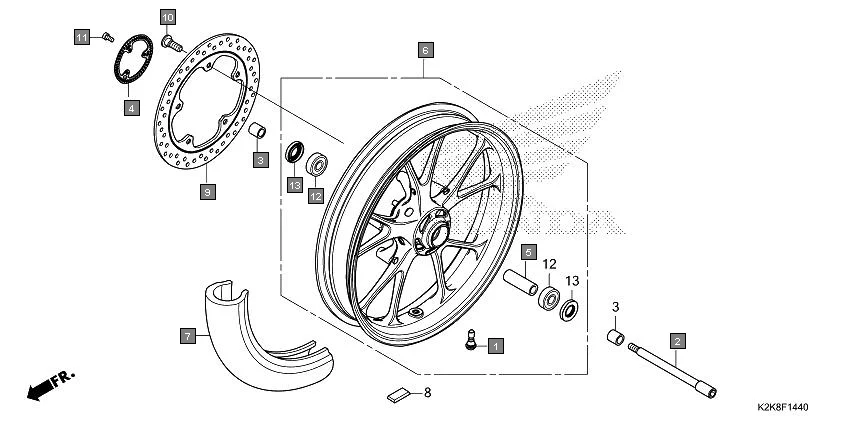

F-14-40 - FRONT WHEEL
HONDA CB300F MC300AS · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 1 | 42753-K24-G11 | VALVE, RIM(ACCURA) | 1 | |
| 2 | 44301-K1L-D00 | AXLE, FR. WHEEL | 1 | |
| 3 | 44311-KYJ-900 | COLLAR, FR. WHEEL | 2 | |
| 4 | 44515-K43-D20 | RING, FR. PULSER | 1 | |
| 5 | 44620-KYJ-900 | COLLAR, FR. AXLE DISTANCE | 1 | |
| 6 | 44650-K2K-D00ZA | WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 44711-K2K-D01 | TIRE, FR.(MRF) (110/70R17 M/C 54H) | 1 | |
| 9 | 45251-K2K-D01 | DISK, FR. BRAKE | 1 | |
| 10 | 90105-KSP-870 | BOLT, FRONT DISK, 8 X 24 | 5 | |
| 11 | 90131-KYJ-610 | BOLT, TORX, 5X10 | 3 | |
| 12 | 91052-K21-901 | BEARING, RADIAL BALL, 6302UU (NEI) | 2 | |
| 13 | 91252-MC7-003 | DUST SEAL, 22X42X7(ARAI) | 2 | |
