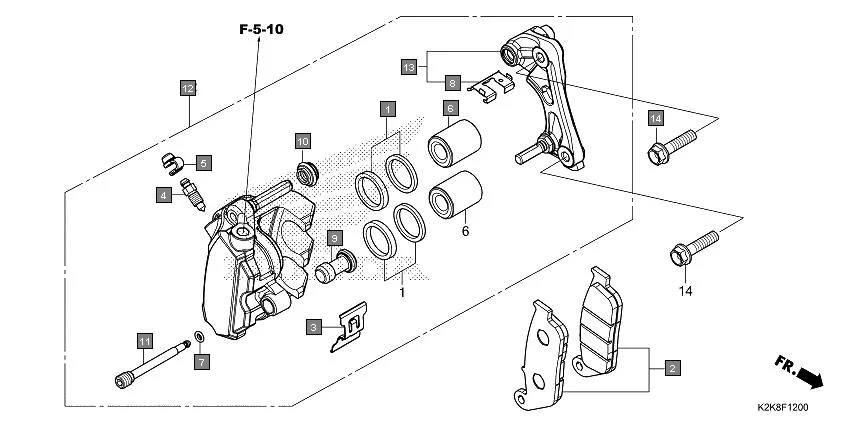

F-12 - FRONT BRAKE CALIPER
HONDA CB300F MC300AS · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-GE2-405 | SEAL SET, PISTON | 2 | |
| 2 | 06455-K31-902 | PAD SET | 1 | |
| 3 | 43108-MCT-006 | SPRING, PAD | 1 | |
| 4 | 43352-568-003 | SCREW, BLEEDER(NISSIN) | 1 | |
| 5 | 43353-461-771 | CAP, BLEEDER | 1 | |
| 6 | 45107-MN5-006 | PISTON | 2 | |
| 7 | 45111-MAJ-G41 | STOPPER RING | 1 | |
| 8 | 45112-MS9-611 | RETAINER | 1 | |
| 9 | 45132-166-016 | BOOT, PIN BUSH(NISSIN) | 1 | |
| 10 | 45133-MA3-006 | BOOT B | 1 | |
| 11 | 45215-MAJ-G41 | PIN, HANGER | 1 | |
| 12 | 45250-K2K-D01 | CALIPER SUB ASSY., R. FR. (NISSIN) | 1 | |
| 13 | 45290-K2K-D01 | BRACKET SUB ASSY., R. FR. | 1 | |
| 14 | 90131-K2K-D00 | BOLT, FLANGE, 8X32 | 2 | |
