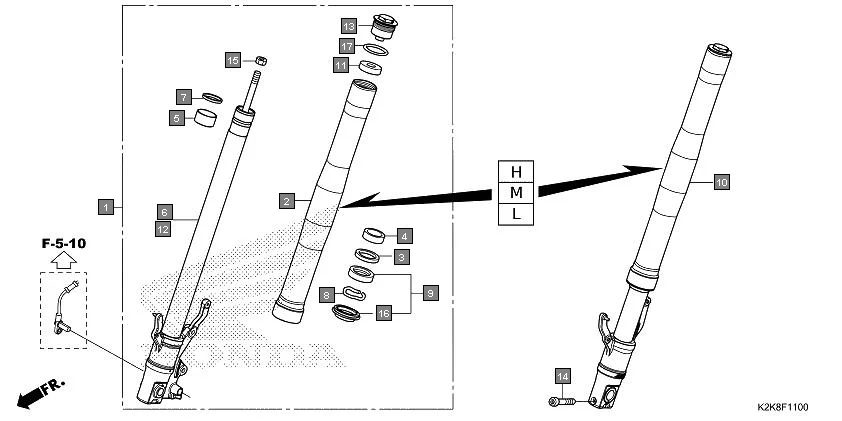

F-11 - FRONT FORK

HONDA CB300F MC300AS · 23 parts

Parts in This Assembly (23)

Ref #	Part Number	Description	Qty
1	51400-K2K-305	FORK ASSY., R. FR.(SHOWA) (H,DARK GOLD)	1
1	51400-K2K-306	FORK ASSY., R. FR.(SHOWA) (M,GOLD)	1
1	51400-K2K-307	FORK ASSY., R. FR.(SHOWA) (L,LIGHT GOLD)	1
2	51410-K1L-305	TUBE, OUTER(H,DARK GOLD)	2
2	51410-K1L-306	TUBE, OUTER(M,GOLD)	2
2	51410-K1L-307	TUBE, OUTER(L,LIGHT GOLD)	2
3	51412-461-003	RING, BACK UP	2
4	51414-K1L-D01	BUSH, GUIDE	2
5	51415-K1L-D01	BUSH, SLIDER	2
6	51425-K2K-D01	DAMPER COMP., R. FR.	1
7	51438-K1L-D01	RING B, PISTON	2
8	51447-KR6-003	RING, OIL SEAL STOPPER	2
9	51490-KWL-003	SEAL SET, FR. FORK	2
10	51500-K2K-305	FORK ASSY., L. FR.(SHOWA) (H,DARK GOLD)	1
10	51500-K2K-306	FORK ASSY., L. FR.(SHOWA) (M,GOLD)	1
10	51500-K2K-307	FORK ASSY., L. FR.(SHOWA) (L,LIGHT GOLD)	1
11	51517-K1L-D01	RUBBER, STOPPER	2
12	51525-K2K-D01	DAMPER COMP., L. FR.	1
13	51545-K1L-D01	BOLT, FR. FORK	2
14	90101-K2K-D00	BOLT, SOCKET, 8X40	1
15	90301-K1L-D01	NUT, HEX.	2
16	91254-KAZ-003	SEAL, DUST	2
17	91356-MW0-003	O-RING, 37.2X2.4(SHOWA)	2
