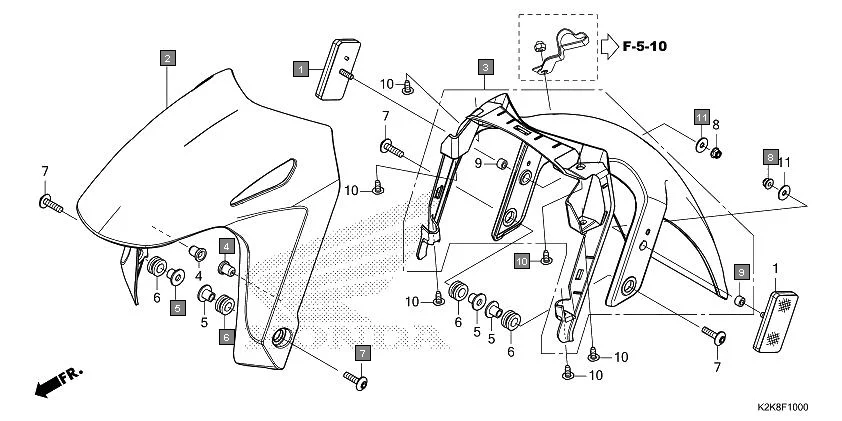

F-10 - FRONT FENDER
HONDA CB300F MC300AS · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 61100-K2K-D00ZD | FENDER SET A, FR.(WL) *TYPE3 1* | 1 | |
| 2 | 61100-K2K-D00ZB | FENDER SET A, FR.(WL) *TYPE2* | 1 | |
| 2 | 61100-K2K-D00ZC | FENDER SET A, FR.(WL) *TYPE1* | 1 | |
| 3 | 61130-K2K-D00 | FENDER ASSY. B, FR. | 1 | |
| 4 | 61312-149-300 | BOOT, HEADLIGHT BRACKET | 2 | |
| 5 | 80112-K2K-D00 | COLLAR, UNDER COWL (FOR FR.) | 4 | |
| 6 | 80112-KVN-900 | RUBBER, RR FENDER | 4 | |
| 7 | 90130-KYJ-900 | SCREW, PAN, 6X22 | 4 | |
| 8 | 90301-K0P-D91 | NUT, FLANGE, 5MM(PT) (SIMMONDS MARSHALL) | 2 | |
| 8 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
| 9 | 90312-KZK-950 | COLLAR, 9.5X5.5 | 2 | |
| 11 | 94103-05800 | WASHER,PLAIN, 5.5MM | 2 | |
