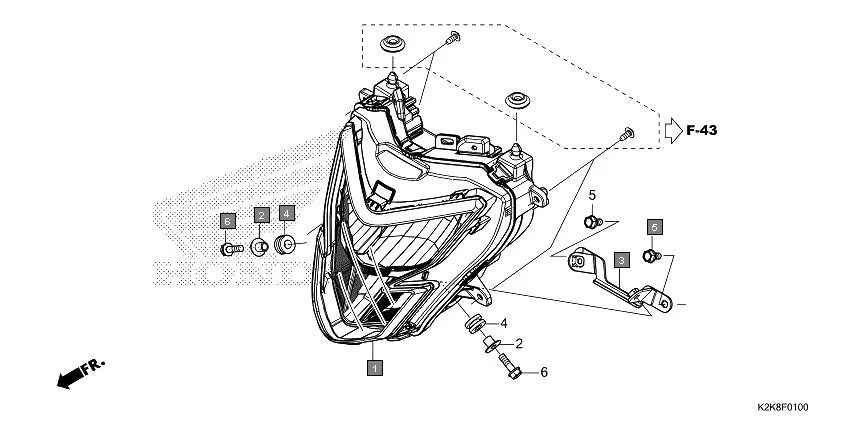

F-1 - HEADLIGHT
HONDA CB300F MC300AS · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-K2K-D01 | HEADLIGHT ASSY. | 1 | |
| 2 | 33111-K1L-D00 | COLLAR, HEADLIGHT MOUNTING | 2 | |
| 3 | 61313-K2K-D00 | STAY, FR. COWL LOWER | 1 | |
| 4 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 5 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 2 | |
| 6 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
