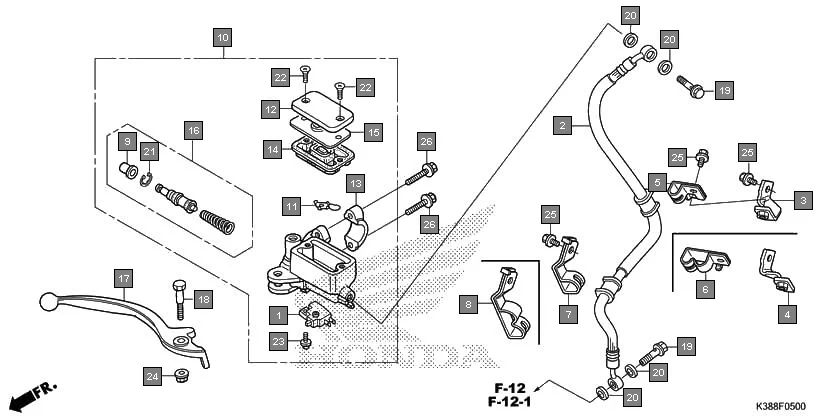

F-5 - FRONT BRAKE MASTER CYLINDER
HONDA CB Unicorn 160 CBF160H · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35340-KSP-B51 | SWITCH ASSY., FR. STOP | 1 | |
| 2 | 45126-K38-911 | HOSE COMP. A, FR. BRAKE | 1 | |
| 2 | 45126-K38-901 | HOSE COMP., FR. BRAKE | 1 | |
| 3 | 45131-K38-900 | STAY COMP., FR. BRAKE HOSE | 1 | |
| 4 | 45131-K38-910 | STAY COMP., FR. BRAKE HOSE | 1 | |
| 5 | 45155-K21-900 | CLAMPER A, FR. BRAKE HOSE | 1 | |
| 6 | 45155-K21-920 | CLAMPER A, FR. BRAKE HOSE | 1 | |
| 7 | 45156-K21-900 | CLAMPER B, FR. BRAKE HOSE | 1 | |
| 8 | 45156-K21-920 | CLAMPER B, FR. BRAKE HOSE | 1 | |
| 9 | 45504-410-003 | BOOT COMP. | 1 | |
| 10 | 45510-K21-921 | CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) | 1 | |
| 10 | 45510-K21-901 | CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) | 1 | |
| 11 | 45512-MA6-006 | PROTECTOR | 1 | |
| 12 | 45513-HA2-006 | CAP, MASTER CYLINDER | 1 | |
| 13 | 45517-166-006 | HOLDER, MASTER CYLINDER | 1 | |
| 14 | 45520-GE2-006 | DIAPHRAGM | 1 | |
| 15 | 45521-K21-901 | PLATE, DIAPHRAGM | 1 | |
| 16 | 45530-KVY-911 | CYLINDER SET, MASTER | 1 | |
| 16 | 45530-471-831 | CYLINDER SET, MASTER | 1 | |
| 17 | 53175-KSP-B51 | LEVER, R. STEERING HANDLE | 1 | |
| 18 | 90114-166-006 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 21 | 90651-MA5-671 | CIRCLIP | 1 | |
| 22 | 93600-04012-1G | SCREW, FLAT, 4X12 | 2 | |
| 23 | 90508-K21-921 | SCREW-WASHER, 4X12 | 1 | |
