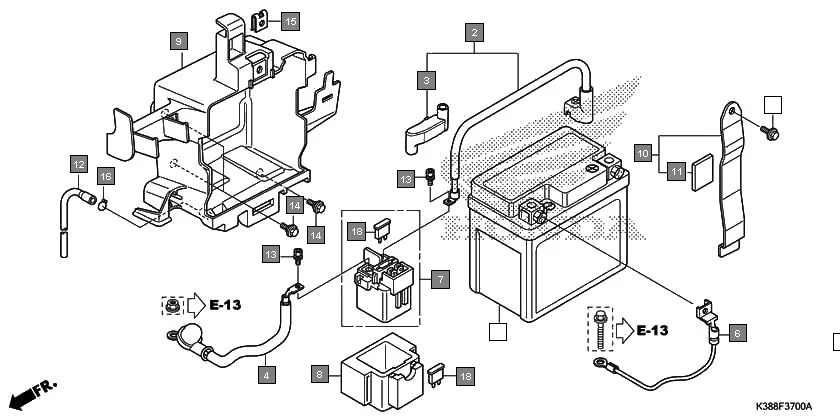

F-37 - BATTERY
HONDA CB Unicorn 160 CBF160H · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 1 | 31500-KRP-N41 | BATTERY ASSY MF 5 | 1 | |
| 2 | 32401-K38-900 | CABLE, STARTER MAGNETIC BATTERY | 1 | |
| 3 | 32406-MT3-610 | COVER, ST. MAG TERMINAL A | 1 | |
| 4 | 32410-K38-900 | CABLE, STARTER MOTOR | 1 | |
| 6 | 32601-K38-900 | CABLE, BATTERY EARTH | 1 | |
| 7 | 35850-K38-901 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 8 | 35856-MT3-000 | RUBBER, SHOCK | 1 | |
| 9 | 50384-K38-900 | BOX, BATTERY | 1 | |
| 10 | 50386-K21-900 | BAND COMP., BATTERY | 1 | |
| 11 | 50386-130-690 | CUSHION C, BATTERY | 1 | |
| 12 | 50388-K38-900 | TUBE, BATTERY BOX | 1 | |
| 13 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 15 | 90320-747-000 | NUT SPRING M6 | 1 | |
| 17 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 17 | 95702-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 18 | 98200-32000 | BLADE, FUSE, 20A | 2 | |
