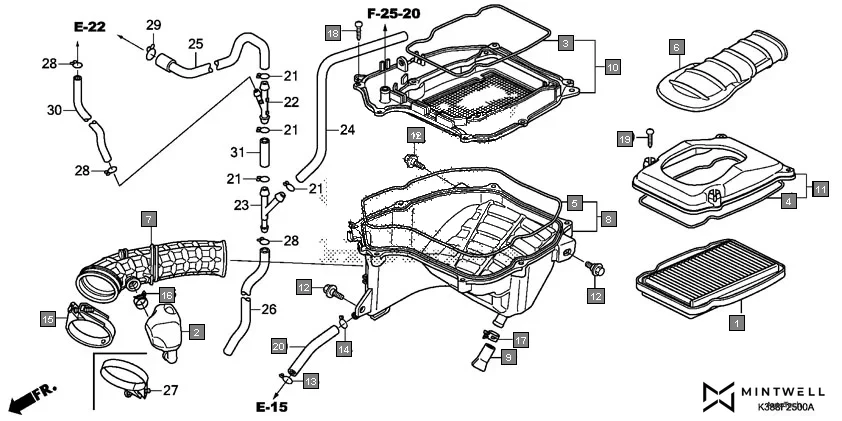

F-25 - AIR CLEANER
HONDA CB Unicorn 160 CBF160H · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17211-K38-900 | ELEMENT COMP., AIR CLEANER | 1 | |
| 2 | 17213-K38-900 | RESONATOR | 1 | |
| 3 | 17214-K38-900 | SEAL, AIR CLEANER | 1 | |
| 5 | 17215-KSP-900 | SEAL A AIR/C | 1 | |
| 6 | 17219-K38-900 | DUCT, AIR CLEANER | 1 | |
| 7 | 17222-K38-900 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 8 | 17225-K38-900 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 9 | 17227-KTE-910 | V.TUBE 11X15X40 | 1 | |
| 10 | 17235-K38-900 | HOLDER SUB ASSY., AIR CLEANER | 1 | |
| 11 | 17245-K38-900 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 11 | 17245-K38-901 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 12 | 90111-162-000 | BOLT, FLANGE, 6MM | 3 | |
| 13 | 90651-KM9-000 | CLIP B14 TUBE | 1 | |
| 14 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 15 | 90652-K38-900 | BAND, AIR CLEANER CONNECTING TUBE(54MM) | 1 | |
| 16 | 90678-K38-900 | CLIP, RESONATOR | 1 | |
| 17 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 18 | 93903-25480 | SCREW TAPPING 5X20 | 7 | |
| 19 | 93903-25580 | SCREW TAPPING 5X25 | 4 | |
| 20 | 95005-80105-20 | TUBE, 8X105 | 1 | |
