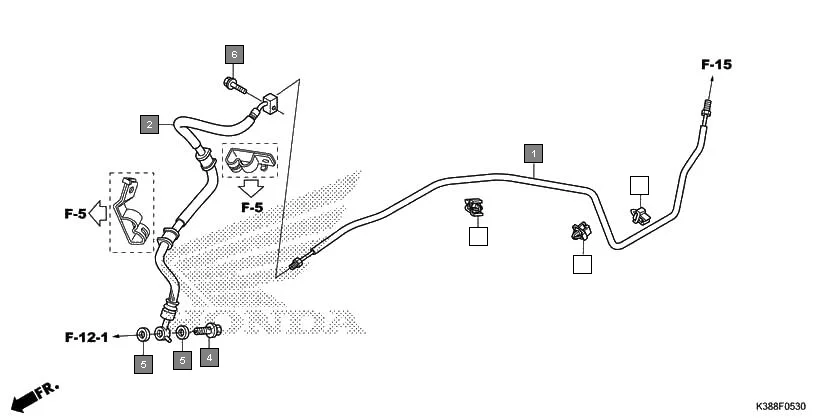

F-5-30 - BRAKE PIPE
HONDA CB Unicorn 160 CBF160H · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45127-K38-910 | PIPE COMP., FR. BRAKE | 1 | |
| 2 | 45129-K38-911 | HOSE COMP. B, FR. BRAKE | 1 | |
| 3 | 46391-SDA-A01 | CLIP G, BRAKE PIPE | 3 | |
| 4 | 90145-GAZ-981 | BOLT, OIL, 10X22 | 1 | |
| 5 | 90545-300-000 | WASHER ,OIL BOLT | 2 | |
| 6 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 1 | |
