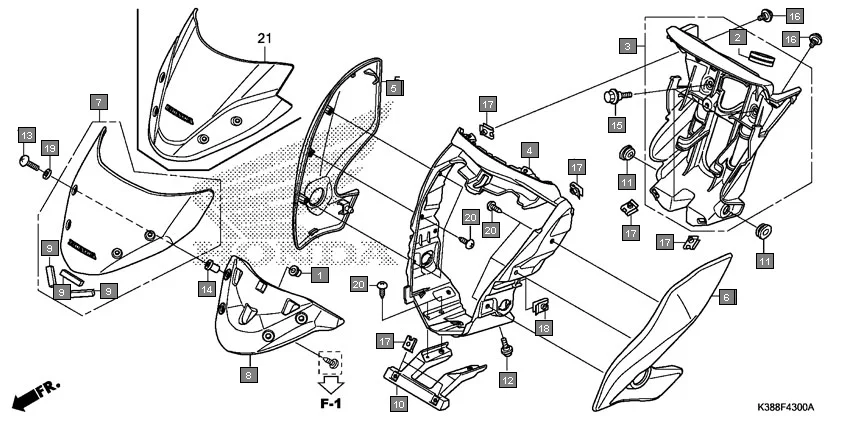

F-43 - FRONT COWL
HONDA CB Unicorn 160 CBF160H · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33706-KTE-910 | GROMMET, TAILLIGHT | 1 | |
| 2 | 37312-KT2-000 | GROMMET, COMBINATION SWITCH | 1 | |
| 3 | 61300-K38-900 | COVER COMP., HEADLIGHT RR. | 1 | |
| 4 | 61301-K38-900 | COWL, FR. | 1 | |
| 5 | 61305-K38-900ZA | GARNISH, R. FR. *R355M* IMPERIAL RED METALLIC | 1 | |
| 5 | 61305-K38-900ZB | GARNISH, R. FR. *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 5 | 61305-K38-900ZD | GARNISH, R. FR. *NHA04M* GENY GRAY METALLIC | 1 | |
| 5 | 61305-K38-900ZE | GARNISH, R. FR. *NHB63P* PEARL AMAZING WHITE | 1 | |
| 6 | 61306-K38-900ZA | GARNISH, L. FR.*R355M* IMPERIAL RED METALLIC | 1 | |
| 6 | 61306-K38-900ZB | GARNISH, L. FR.*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 6 | 61306-K38-900ZD | GARNISH, L. FR. *NHA04M* GENY GRAY METALLIC | 1 | |
| 6 | 61306-K38-900ZE | GARNISH, L. FR. *NHB63P* PEARL AMAZING WHITE | 1 | |
| 7 | 64100-K38-900ZA | WINDSCREEN SET(WL)*TYPE1* | 1 | |
| 8 | 64131-K38-900 | WINDSCREEN(INNER) | 1 | |
| 9 | 64141-K38-900 | RUBBER SPONGE, WINDSCREEN | 3 | |
| 10 | 64315-K38-900 | STAY, FR. NUMBER PLATE | 1 | |
| 11 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 13 | 90109-MT3-000 | SCREW, TRUSS, 5X20 | 4 | |
| 14 | 90111-MM9-000 | NUT, COWL SETTING, 5MM | 4 | |
| 16 | 90134-KPP-T00 | SCREW, PAN, 5X14 | 2 | |
| 19 | 90504-964-000 | WASHER, THRUST, 5MM | 4 | |
| 20 | 93903-25220 | SCREW, TAPPING, 5X12 | 10 | |
