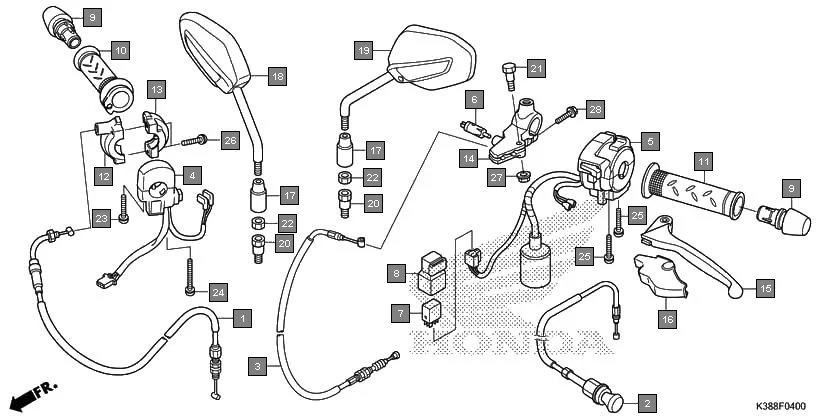

F-4 - HANDLE LEVER/SWITCH/CABLE/MIRROR
HONDA CB Unicorn 160 CBF160H · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K38-901 | CABLE COMP., THROTTLE | 1 | |
| 2 | 17950-K38-901 | CABLE COMP., CHOKE | 1 | |
| 3 | 22870-K38-901 | CABLE COMP., CLUTCH | 1 | |
| 4 | 35150-K38-901 | SWITCH ASSY., STARTER | 1 | |
| 5 | 35200-K38-901 | SWITCH ASSY., WINKER | 1 | |
| 6 | 35330-KWS-901 | SWITCH ASSY., CLUTCH | 1 | |
| 7 | 38502-KSP-910 | RELAY COMP., POWER (MICRO ISO 5P) | 1 | |
| 8 | 38506-KSP-910 | SUS., POWER RELAY | 1 | |
| 9 | 53105-KRC-900 | END STRG. HANDLE | 2 | |
| 10 | 53140-KSP-A70 | GRIP COMP THROT | 1 | |
| 11 | 53166-KSP-A70 | GRIP L HANDLE | 1 | |
| 12 | 53167-KWF-900 | HOUSING UP THROT | 1 | |
| 13 | 53168-KTE-910 | HOUSING UND.THROTTLE | 1 | |
| 14 | 53172-KTE-930 | BRKT L HNDL LEVER | 1 | |
| 15 | 53178-K21-900 | LEVER COMP., L. HANDLE | 1 | |
| 16 | 53179-KWF-950 | COVER, L. HANDLE LEVER | 1 | |
| 17 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 18 | 88210-K38-901ZC | MIRROR COMP., R. *NH1* BLACK | 1 | |
| 19 | 88220-K38-901ZC | MIRROR COMP., L. *NH1* BLACK | 1 | |
| 20 | 90103-KTE-920 | BOLT, ADAPTER, 10MM | 2 | |
| 21 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 22 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 23 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 24 | 93500-04045-0G | SCREW PAN 4X45 | 1 | |
| 25 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 26 | 93500-05022-0G | SCREW, PAN, 5X22 | 2 | |
