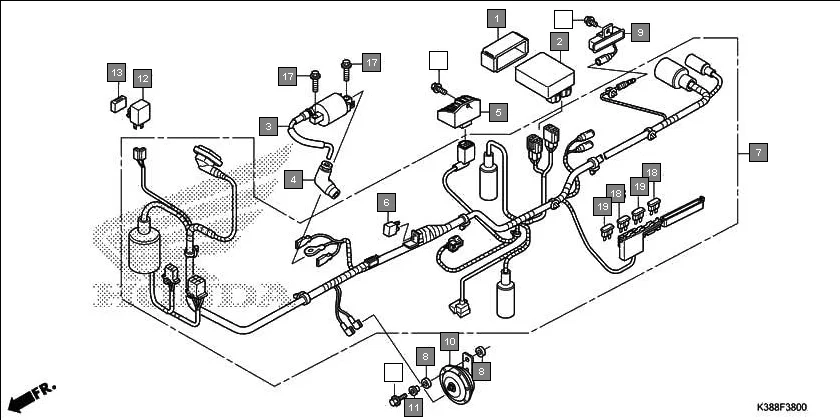

F-38 - WIRE HARNESS
HONDA CB Unicorn 160 CBF160H · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-KWP-D21 | CUSHION, C.D.I. UNIT (SHINDENGEN) | 1 | |
| 2 | 30410-K38-901 | C.D.I. UNIT(DC) | 1 | |
| 3 | 30500-K38-901 | COIL ASSY., IGNITION | 1 | |
| 4 | 30700-KZA-W01 | CAP ASSY. NOISE SUPPRESSOR | 1 | |
| 5 | 31600-KTE-601 | RECTIFIER COMP., REGULATOR (STAR ENGINEERS)6ID, | 1 | |
| 6 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 7 | 32100-K38-900 | HARNESS, WIRE | 1 | |
| 8 | 33714-K38-900 | RUBBER, TAILLIGHT BRACKET | 2 | |
| 9 | 35400-K38-901 | RESISTOR COMP. | 1 | |
| 10 | 38110-K38-901 | HORN COMP., HIGH | 1 | |
| 11 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 12 | 38301-K14-931 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 | |
| 13 | 38306-K38-901 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 | |
| 14 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
| 14 | 95702-06010-00 | BOLT, FLANGE, 6X10 | 1 | |
| 16 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 16 | 95702-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 18 | 98200-31000 | BLADE, FUSE 10A | 2 | |
| 19 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
