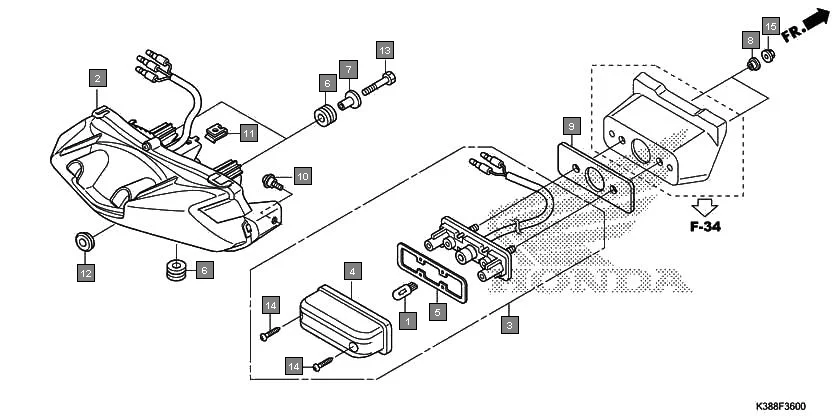

F-36 - TAILLIGHT
HONDA CB Unicorn 160 CBF160H · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33301-KYJ-901 | BULB, WEDGE BASE(T10 12V 5W) | 1 | |
| 2 | 33701-K38-901 | TAILLIGHT UNIT | 1 | |
| 3 | 33720-K38-901 | LIGHT ASSY., LICENSE(12V 5W) | 1 | |
| 4 | 33723-KSP-B01 | COVER COMP. | 1 | |
| 5 | 33729-KSP-B01 | PACKING, LENS | 1 | |
| 6 | 61103-357-000 | RUBBER FR. FENDER MOUNT | 3 | |
| 7 | 61104-KM7-910 | COLLAR,FAIRING | 2 | |
| 8 | 80202-KVE-900 | COLLAR LICENSE LIGHT | 2 | |
| 9 | 80203-KVE-900 | RUBBER LICENSE LIGHT | 1 | |
| 12 | 90671-KSP-860 | GROMMET, PANEL | 1 | |
| 13 | 92101-05025-0H | BOLT, HEX., 5X25 | 2 | |
| 14 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
| 15 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
