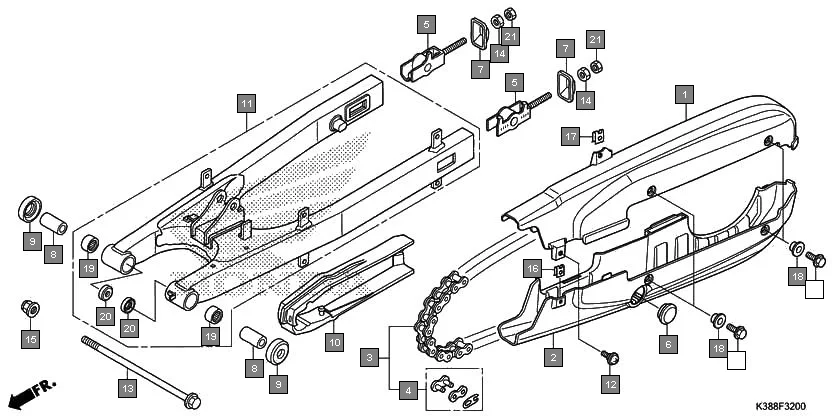

F-32 - SWINGARM
HONDA CB Unicorn 160 CBF160H · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-K38-900 | CASE, UPPER HALF DRIVE CHAIN | 1 | |
| 2 | 40520-K38-900 | CASE, UNDER HALF DRIVE CHAIN | 1 | |
| 3 | 40530-KSP-901 | CHAIN, DRIVE(428H-126)(T.I.D.) | 1 | |
| 3 | 40530-KSP-902 | CHAIN, DRIVE(428H-126)(L.G.B.) | 1 | |
| 4 | 40531-KSP-901 | JOINT, DRIVE CHAIN(T.I.D.) | 1 | |
| 4 | 40531-KSP-902 | JOINT, DRIVE CHAIN(L.G.B.) | 1 | |
| 5 | 40543-KSP-900 | ADJUSTER, R. CHAIN | 2 | |
| 6 | 40545-KWV-010 | CAP, CHAIN CASE PEEP HOLE | 1 | |
| 7 | 40546-KR1-760 | CAP, RR. FORK END | 2 | |
| 8 | 52141-K21-900 | COLLAR, SWINGARM PIVOT | 2 | |
| 9 | 52144-GC4-003 | DUST SEAL, 31X40.5X7.1(ARAI) | 2 | |
| 10 | 52170-K21-900 | SLIDER, CHAIN | 1 | |
| 11 | 52200-K38-910 | SWINGARM SUB ASSY., RR. | 1 | |
| 11 | 52200-K38-900 | SWINGARM SUB ASSY., RR. | 1 | |
| 13 | 90121-KSP-900 | BOLT, SWINGARM PIVOT | 1 | |
| 14 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 15 | 90305-KCJ-951 | NUT, U, 14MM(FUJI SEIMITSU) | 1 | |
| 19 | 91071-KSP-901 | BEARING, NEEDLE, 20X26X20 | 2 | |
| 20 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 2 | |
| 21 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
