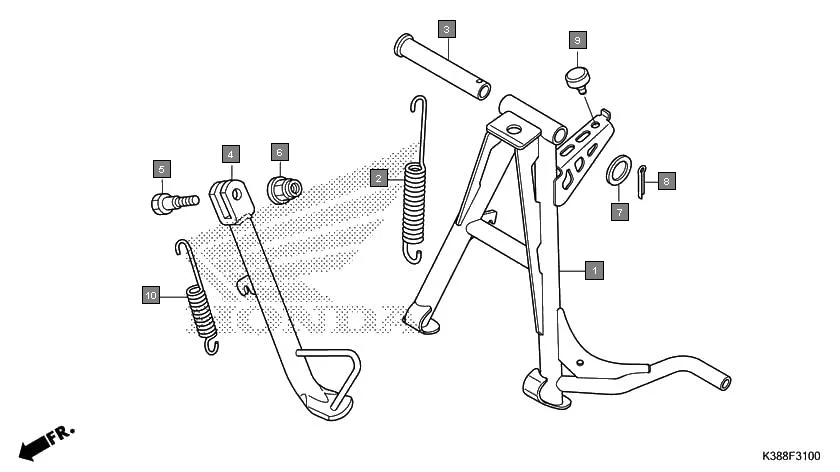

F-31 - STAND
HONDA CB Unicorn 160 CBF160H · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50500-K38-900 | STAND COMP., MAIN | 1 | |
| 2 | 50520-K38-900 | SPRING, MAIN STAND | 1 | |
| 3 | 50526-KTE-910 | SHAFT MAIN STAND PIVOT | 1 | |
| 4 | 50530-K38-900 | BAR COMP., SIDE STAND | 1 | |
| 5 | 90107-GN1-010 | SCREW SIDE STAND PIVOT | 1 | |
| 7 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 8 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 9 | 95011-62000 | RUBBER B, STAND STOPPER | 1 | |
| 10 | 50531-K67-A00 | SPRING A, SIDE STAND | 1 | |
