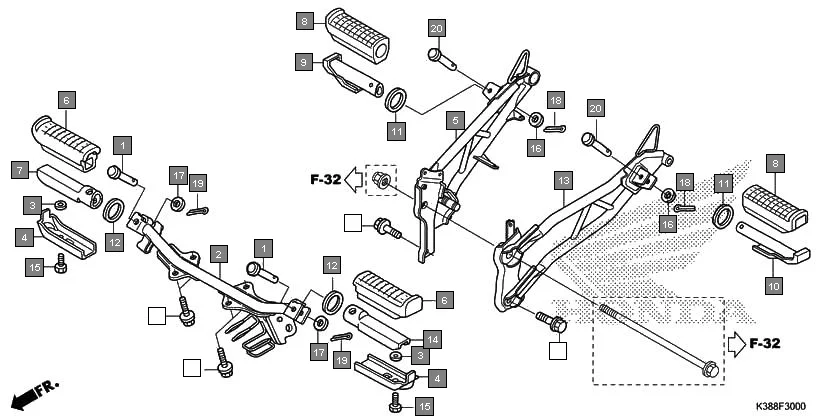

F-30 - STEP
HONDA CB Unicorn 160 CBF160H · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50602-KSP-900 | PIN,M STEP BAR JOINT | 2 | |
| 2 | 50610-K38-900 | BAR COMP., STEP | 1 | |
| 3 | 50618-KE8-000 | COLLAR, 6.5 X 11 X 3 | 2 | |
| 4 | 50619-KSP-900 | PLATE, STEP LOWER | 2 | |
| 5 | 50640-K38-910 | HOLDER, R. STEP | 1 | |
| 5 | 50640-K38-900 | HOLDER, R. STEP | 1 | |
| 6 | 50661-KFN-880 | RUBBER, MAIN STEP | 2 | |
| 7 | 50701-KSP-900 | BAR,R M STEP | 1 | |
| 8 | 50710-KET-600 | RUBBER, PILLION STEP | 2 | |
| 9 | 50711-KET-600 | BAR, R. PILLION STEP | 1 | |
| 10 | 50712-KET-600 | BAR, L. PILLION STEP | 1 | |
| 11 | 50715-KE8-000 | PLATE, P. STEP SIDE | 2 | |
| 12 | 50715-KSP-910 | PLATE,P STEP SIDE | 2 | |
| 13 | 50740-K38-900 | HOLDER, L. STEP | 1 | |
| 14 | 50801-KSP-900 | BAR,L M STEP | 1 | |
| 15 | 92101-06012-0G | BOLT, HEX 6 X 12 | 2 | |
| 16 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 17 | 94102-08000 | WASHER, PLAIN, 8MM | 2 | |
| 18 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
| 20 | 95015-81000 | PIN A PILLION STEP | 2 | |
| 21 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
| 21 | 95702-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
| 22 | 95701-10025-00 | BOLT, FLANGE, 10 X 25 | 2 | |
| 22 | 95702-10025-00 | BOLT, FLANGE, 10X25 | 2 | |
