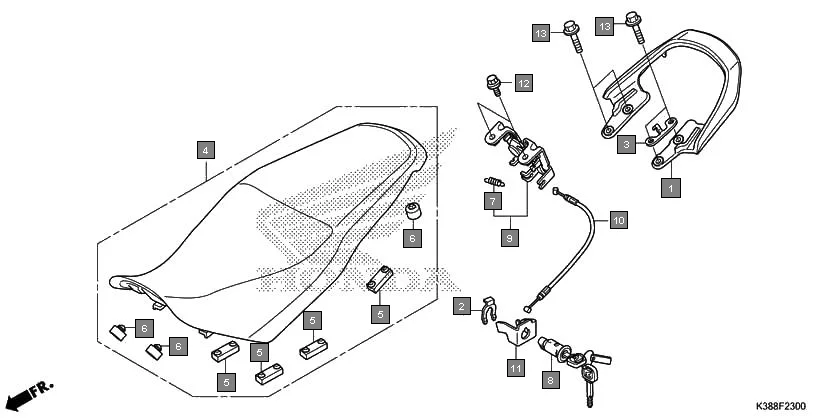

F-23 - SEAT
HONDA CB Unicorn 160 CBF160H · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K38-900ZA | GRIP, RR. *NHB60M* MAT SELENE SILVER METALLIC | 1 | |
| 2 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 3 | 77106-K21-900 | STAY, HELMET HOLDER | 1 | |
| 4 | 77200-K38-901 | SEAT COMP., DOUBLE | 1 | |
| 5 | 77205-286-000 | RUBBER `B SEAT SETTING | 6 | |
| 6 | 77206-KTE-910 | RUBBER, SEAT SETTING | 4 | |
| 7 | 77234-GN2-000 | SPRING, SEAT LOCK | 1 | |
| 8 | 77239-KYJ-T01 | KEY, SEAT LOCK | 1 | |
| 9 | 77250-K38-900 | LOCK COMP., SEAT | 1 | |
| 10 | 77260-K38-900 | CABLE, SEAT LOCK | 1 | |
| 11 | 77582-KPP-T00 | STAY, SEAT LOCK CABLE | 1 | |
| 13 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 4 | |
| 13 | 95702-08025-00 | BOLT, FLANGE, 8X25 | 4 | |
