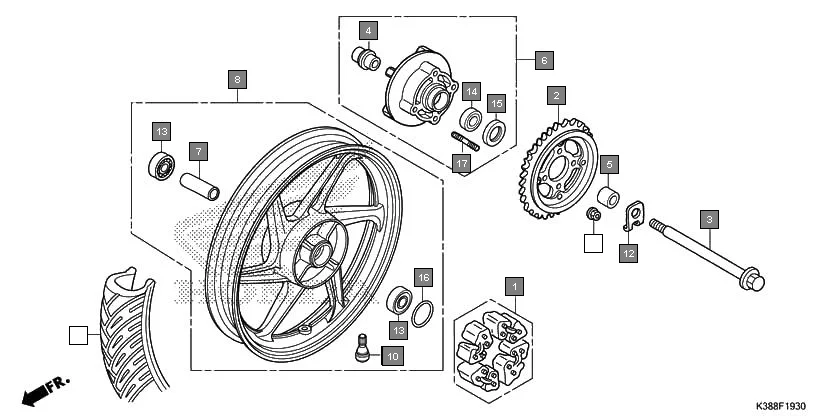

F-19-30 - REAR WHEEL
HONDA CB Unicorn 160 CBF160H · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KSP-900 | DAMPER SET, WHEEL | 1 | |
| 2 | 41200-K38-900 | SPROCKET COMP., FINAL DRIVEN (43T) | 1 | |
| 3 | 42301-K21-900 | AXLE, RR. WHEEL | 1 | |
| 4 | 42303-K18-900 | SLEEVE, RR. WHEEL | 1 | |
| 5 | 42304-KSP-B00 | COLLAR, RR. WHEEL SIDE | 1 | |
| 6 | 42615-K38-900 | FLANGE SUB ASSY., FINAL DRIVEN | 1 | |
| 7 | 42620-KSP-900 | COLLAR, REAR AXLE DISTANCE | 1 | |
| 8 | 42650-K38-900ZB | WHEEL SUB ASSY., RR.*NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 9 | 42711-KSP-B01 | TIRE, RR.(MRF)(110/80-17 57P) | 1 | |
| 11 | 90304-KST-942 | NUT FLG.PT 10MM | 4 | |
| 13 | 91051-KPP-N01 | BEARING, RADIAL BALL, 6302U (FAG) | 2 | |
| 13 | 96140-63020-10 | BRG., BALL RADIAL, 6302 (U) | 2 | |
| 14 | 91053-K21-901 | BEARING, RADIAL BALL, 6004UU (NEI) | 1 | |
| 14 | 96150-60040-10 | BEARING, RADIAL BALL, 6004UU | 1 | |
| 15 | 91257-230-003 | OIL SEAL 28X42X7 | 1 | |
| 15 | 91257-230-005 | OIL SEAL, 28X42X7(NOK) | 1 | |
| 16 | 91352-KSP-900 | O RING, 51 X 2 | 1 | |
| 17 | 92915-10025-0E | BOLT, STUD II, 10X25 | 4 | |
