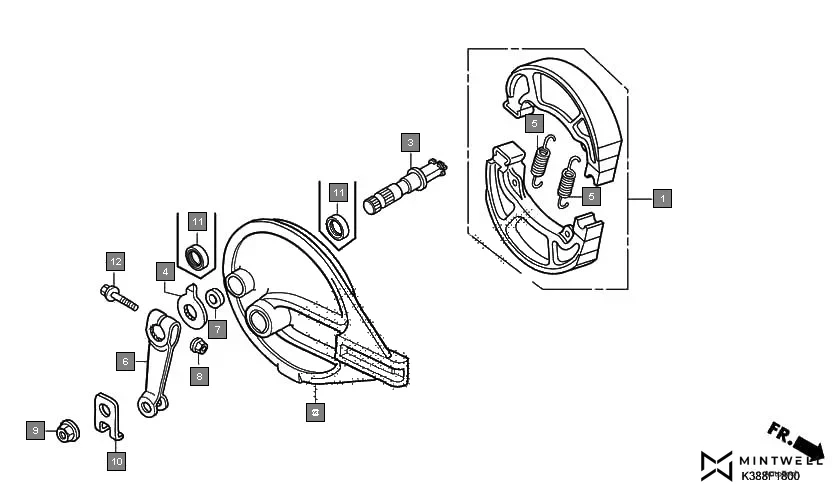

F-18 - REAR BRAKE PANEL
HONDA CB Unicorn 160 CBF160H · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KVT-D10 | SHOE SET, BRAKE(ASK) | 1 | |
| 1 | 06430-KTN-700 | SHOE SET, BRAKE(JB) | 1 | |
| 2 | 43100-K38-910ZB | PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 2 | 43100-KYE-910ZB | PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 3 | 43141-K38-910 | CAM, RR. BRAKE | 1 | |
| 3 | 45141-KTC-900 | CAM FR. BRAKE | 1 | |
| 4 | 43145-K38-900 | INDICATOR, RR. BRAKE | 1 | |
| 5 | 43151-329-000 | SPRING, BRAKE SHOE (ASK) | 2 | |
| 5 | 45133-KPL-900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 | |
| 6 | 43410-K38-900 | ARM, RR. BRAKE | 1 | |
| 7 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 8 | 90301-KGH-901 | NUT, U, 6MM(FUJI SEIMITSU) | 1 | |
| 8 | 90302-KST-942 | NUT, FLANGE, 6MM (LEO FASTENERS) | 1 | |
| 8 | 90302-KTE-911 | NUT FLANGE PT 6MM | 1 | |
| 9 | 90305-KVN-901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 | |
| 9 | 90305-KVN-902 | NUT, FLANGE, 14MM(LEO FASTENERS) | 1 | |
| 10 | 90560-K21-900 | WASHER, RR. AXLE | 1 | |
| 11 | 91203-KPL-901 | OIL SEAL 14X20X3.2 | 2 | |
| 11 | 91204-KWP-D01 | OIL SEAL, 14X20X3.2(FENNER) | 2 | |
