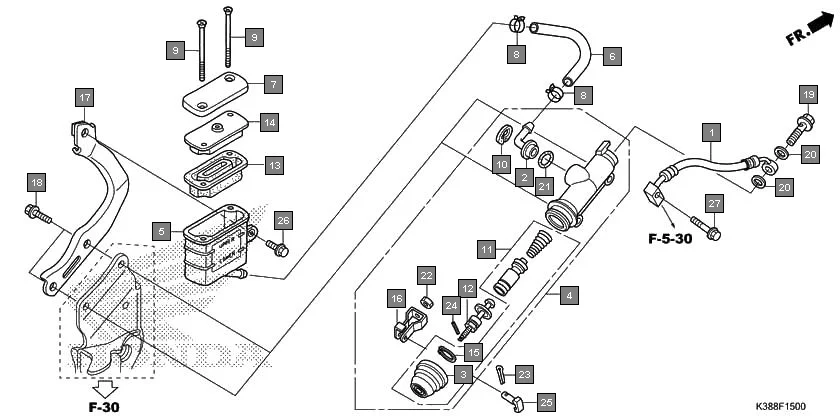

F-15 - MASTER CYLINDER(CBS)
HONDA CB Unicorn 160 CBF160H · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43310-K38-911 | HOSE COMP., COMBI BRAKE | 1 | |
| 2 | 43503-KS6-701 | CONNECTOR, MASTER CYLINDER | 1 | |
| 3 | 43504-KVS-F31 | BOOT | 1 | |
| 4 | 43510-K38-911 | CYLINDER SUB ASSY., RR. MASTER (CBS)(NISSIN) | 1 | |
| 5 | 43511-K38-911 | CUP COMP., OIL | 1 | |
| 6 | 43512-K38-911 | HOSE, RR. MASTER CYLINDER | 1 | |
| 7 | 43513-KBP-881 | CAP, MASTER CYLINDER | 1 | |
| 8 | 43514-KS6-701 | CLAMP. M/C OIL HOSE | 2 | |
| 9 | 90140-KZZ-901 | SCREW, FLAT, 4X45 | 2 | |
| 10 | 43517-KS6-701 | CIRCLIP, RR. MASTER CYLINDER | 1 | |
| 11 | 43520-KVS-F31 | PISTON SET, MASTER CYLINDER | 1 | |
| 12 | 43530-KVS-F31 | ROD COMP., PUSH | 1 | |
| 13 | 45520-GW0-911 | DIAPHRAGM | 1 | |
| 14 | 45521-GW0-911 | PLATE DIAPHRAGM | 1 | |
| 15 | 46182-KVS-F31 | CIRCLIP, MASTER CYLINDER(CBS) | 1 | |
| 16 | 46504-KVS-F31 | JOINT, BRAKE ROD | 1 | |
| 17 | 50192-K38-910 | STAY, OIL CUP | 1 | |
| 18 | 90101-K38-910 | BOLT, FLANGE, 6X18 | 2 | |
| 21 | 91212-422-006 | O RING | 1 | |
| 22 | 94002-06000-0S | NUT, HEX 6MM | 1 | |
| 23 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 24 | 94305-20102 | PIN SPRING 2X10 | 1 | |
| 25 | 95015-54000 | PIN D JOINT | 1 | |
| 26 | 96001-06014-00 | BOLT, FLANGE, SH. 6 X 14 | 1 | |
| 27 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 1 | |
