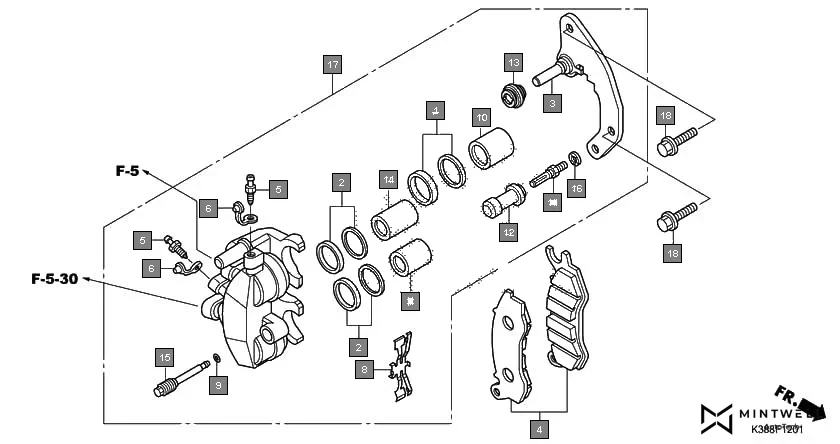

F-12-1 - FRONT BRAKE CALIPER(CBF160-2ID)
HONDA CB Unicorn 160 CBF160H · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-GE2-405 | SEAL SET, PISTON | 1 | |
| 2 | 06451-MZ2-405 | SEAL SET, PISTON | 2 | |
| 3 | 06453-K21-921 | BRACKET SUB ASSY., R. FR. | 1 | |
| 4 | 06455-K21-921 | PAD SET, FR. | 1 | |
| 5 | 43352-568-003 | SCREW, BLEEDER(NISSIN) | 2 | |
| 6 | 43353-461-771 | CAP, BLEEDER | 2 | |
| 7 | 45107-MAJ-G41 | PISTON A, 22X27 | 1 | |
| 8 | 45108-KWN-931 | SPRING, PAD | 1 | |
| 9 | 45111-MAJ-G41 | STOPPER RING | 1 | |
| 10 | 45117-MAJ-G41 | PISTON A, 25X27 | 1 | |
| 11 | 45131-GZ0-006 | BOLT, PIN | 1 | |
| 12 | 45132-166-016 | BOOT, PIN BUSH(NISSIN) | 1 | |
| 13 | 45133-MA3-006 | BOOT B | 1 | |
| 14 | 45207-MAJ-G41 | PISTON B, 22X35 | 1 | |
| 15 | 45215-KPH-951 | PIN, HANGER | 1 | |
| 16 | 45216-166-006 | WASHER, WAVE | 1 | |
| 17 | 45250-K38-911 | CALIPER SUB ASSY., R. FR. (NISSIN) | 1 | |
| 18 | 90155-KSP-900 | BOLT , FLANGE 8X25 | 2 | |
