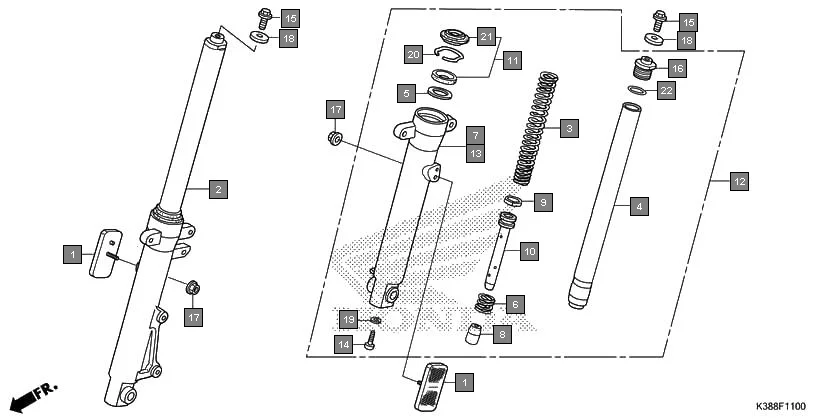

F-11 - FRONT FORK
HONDA CB Unicorn 160 CBF160H · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 51400-K38-911 | FORK ASSY., R. FR.(SHOWA) | 1 | |
| 2 | 51400-K38-901 | FORK ASSY., R. FR.(SHOWA) | 1 | |
| 3 | 51401-K38-901 | SPRING, FR. FORK | 2 | |
| 4 | 51410-K38-901 | PIPE COMP., FR. FORK | 2 | |
| 5 | 51412-KFN-851 | SPRING, BACK UP | 2 | |
| 6 | 51412-KSP-901 | SPRING, REBOUND | 2 | |
| 7 | 51420-K38-911 | CASE COMP., R. FR. BOTTOM | 1 | |
| 7 | 51420-K38-901 | CASE COMP., R. FR. BOTTOM | 1 | |
| 8 | 51432-KFN-851 | PIECE, OIL LOCK | 2 | |
| 9 | 51437-KVN-901 | RING, PISTON | 2 | |
| 10 | 51440-KSP-901 | PIPE, SEAT | 2 | |
| 11 | 51490-KRM-852 | SEAL SET, FR. FORK | 2 | |
| 12 | 51500-K38-901 | FORK ASSY., L. FR.(SHOWA) | 1 | |
| 13 | 51520-K38-901 | CASE COMP., L. FR. BOTTOM | 1 | |
| 14 | 90116-KAG-901 | BOLT, SOCKET, 8MM(SHOWA) | 2 | |
| 15 | 90123-KRM-860 | BOLT, FR. FORK | 2 | |
| 16 | 90123-KSP-901 | BOLT, A FRONT FORK | 2 | |
| 17 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
| 18 | 90521-KSP-900 | WASHER, 10.3MM | 2 | |
| 19 | 90544-KFN-851 | WASHER, SPECIAL, 8MM | 2 | |
| 20 | 90601-KFN-851 | RING, OIL SEAL STOP | 2 | |
| 21 | 91254-GAA-003 | DUST SEAL | 2 | |
| 22 | 91356-KAG-901 | O-RING(SHOWA) | 2 | |
