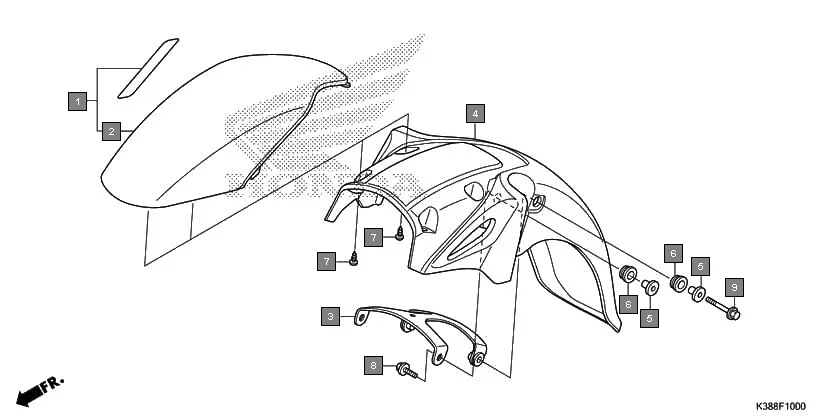

F-10 - FRONT FENDER
HONDA CB Unicorn 160 CBF160H · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61000-K38-910ZA | FENDER SET A, FR.(WL)*TYPE4* | 1 | |
| 1 | 61000-K38-910ZB | FENDER SET A, FR.(WL)*TYPE3* | 1 | |
| 1 | 61000-K38-910ZC | FENDER SET A, FR.(WL)*TYPE2* | 1 | |
| 1 | 61000-K38-910ZD | FENDER SET A, FR.(WL)*TYPE1* | 1 | |
| 2 | 61100-K38-900ZA | FENDER A, FR. *R355M* IMPERIAL RED METALLIC | 1 | |
| 2 | 61100-K38-900ZB | FENDER A, FR. *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 2 | 61100-K38-900ZD | FENDER A, FR. *NHA04M* GENY GRAY METALLIC | 1 | |
| 2 | 61100-K38-900ZE | FENDER A, FR. *NHB63P* PEARL AMAZING WHITE | 1 | |
| 3 | 61101-K21-900 | STAY, FR. FENDER | 1 | |
| 4 | 61102-K38-900 | FENDER B, FR. | 1 | |
| 5 | 61103-KRY-900 | COLLAR, A FR.FENDER | 4 | |
| 6 | 61105-KRY-900 | RUBBER, FR.FENDER MTG. | 4 | |
| 7 | 93903-25280 | SCREW, TAPPING 5X12 | 4 | |
| 9 | 96001-06032-00 | BOLT, FLANGE, SH., 6 X 32 | 2 | |
