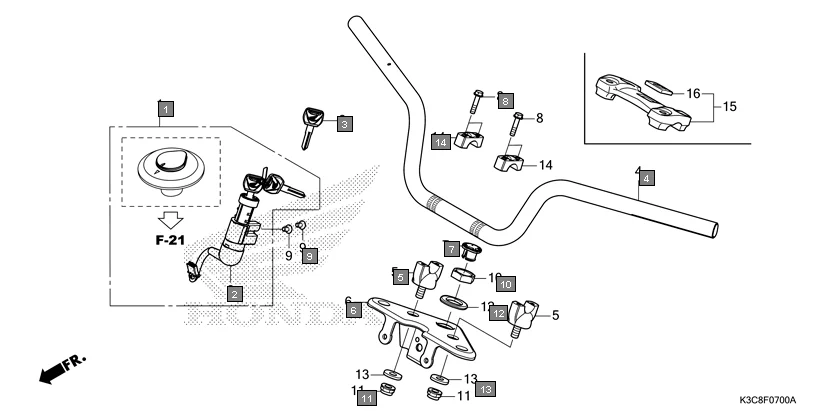

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA Shine100 DX CD100RNT · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-K3C-D11 | KEY SET....................... | 1 | |
| 2 | 35100-K3C-D12 | SWITCH ASSY., COMBINATION & LOCK | 1 | |
| 3 | 35121-K3C-D11 | KEY, BLANK.................... | 1 | |
| 4 | 53100-K3C-D10 | PIPE, STEERING HANDLE | 1 | |
| 5 | 53130-KTE-910 | HOLDER HNDL UNDER | 2 | |
| 6 | 53230-K3C-D10 | BRIDGE COMP., FORK TOP | 1 | |
| 7 | 53232-K43-D00 | CAP, STEERING NUT | 1 | |
| 8 | 90117-383-000 | BOLT, FLANGE, 6X28 | 4 | |
| 9 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 10 | 90304-K0N-D80 | NUT, STEERING STEM | 1 | |
| 11 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 2 | |
| 12 | 90503-K74-N00 | WASHER, STEERING STEM | 1 | |
| 13 | 90521-427-770 | WASHER 10.3 MM | 2 | |
| 14 | 95014-21101 | HOLDER A1, HANDLE PIPE UPPER | 2 | |
