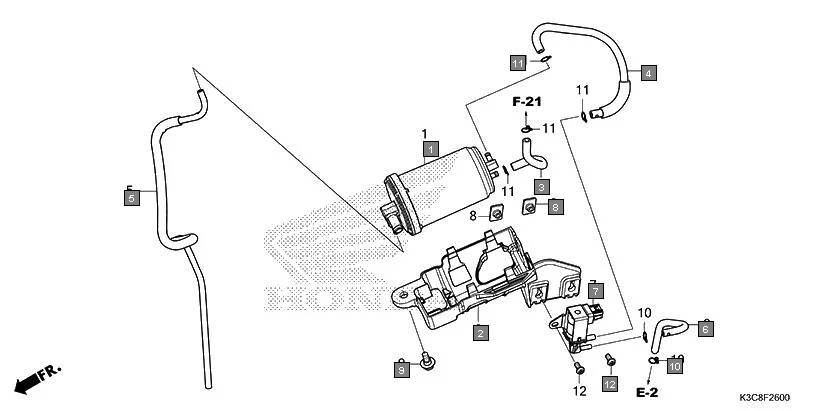

F-26 - CANISTER
HONDA Shine100 DX CD100RNT · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17310-K0N-DJ1 | CANISTER COMP | 1 | |
| 2 | 17411-K3C-D10 | CASE, CANISTER | 1 | |
| 3 | 17412-K3C-D10 | TUBE, CHARGE | 1 | |
| 4 | 17413-K3C-D10 | TUBE A, PURGE | 1 | |
| 5 | 17414-K3C-D10 | TUBE COMP., DRAIN | 1 | |
| 6 | 17415-K3C-D10 | TUBE B, PURGE | 1 | |
| 7 | 36162-K0P-D01 | VALVE, PURGE CONTROL SOLENOID | 1 | |
| 8 | 61304-MGS-D70 | NUT, SPECIAL, 5MM | 2 | |
| 9 | 90111-162-000 | BOLT, FLANGE, 6MM | 1 | |
| 10 | 90651-KWP-F00 | CLIP, TUBE(B7) | 2 | |
| 11 | 90652-KWP-F00 | CLIP, TUBE(B8) | 4 | |
| 12 | 93500-05010-0H | SCREW, PAN, 5X10 | 2 | |
