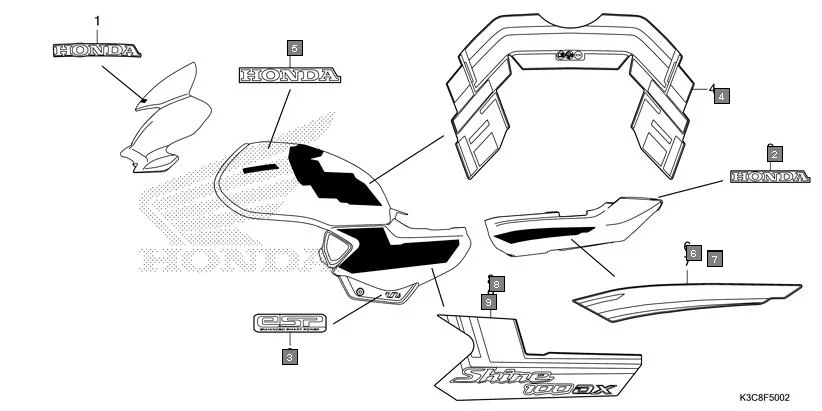

F-50-2 - STRIPE/MARK(CD100RNT)
HONDA Shine100 DX CD100RNT · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K3C-D30ZA | MARK, HONDA(80MM) *TYPE4* | 1 | |
| 1 | 86101-K3C-D30ZB | MARK, HONDA(80MM) *TYPE3* | 1 | |
| 1 | 86101-K3C-D30ZC | MARK, HONDA(80MM) *TYPE2* | 1 | |
| 1 | 86101-K3C-D30ZD | MARK, HONDA(80MM) *TYPE1* | 1 | |
| 2 | 86102-K1E-D00ZA | MARK, HONDA(60MM) *TYPE1* | 1 | |
| 3 | 86170-K0L-D00 | MARK, ENGINE | 1 | |
| 4 | 86171-K3C-D30ZB | STRIPE, FUEL TANK *TYPE4* | 1 | |
| 4 | 86171-K3C-D30ZC | STRIPE, FUEL TANK *TYPE3* | 1 | |
| 4 | 86171-K3C-D30ZD | STRIPE, FUEL TANK *TYPE2* | 1 | |
| 4 | 86171-K3C-D30ZE | STRIPE, FUEL TANK *TYPE1* | 1 | |
| 5 | 86201-K3C-D30ZA | MARK, HONDA(140MM) *TYPE4* | 2 | |
| 5 | 86201-K3C-D30ZB | MARK, HONDA(140MM) *TYPE3* | 2 | |
| 5 | 86201-K3C-D30ZC | MARK, HONDA(140MM) *TYPE2* | 2 | |
| 5 | 86201-K3C-D30ZD | MARK, HONDA(140MM) *TYPE1* | 2 | |
| 6 | 86771-K3C-D30ZC | STRIPE, R. RR. COWL *TYPE3* | 1 | |
| 6 | 86771-K3C-D30ZD | STRIPE, R. RR. COWL *TYPE2* | 1 | |
| 6 | 86771-K3C-D30ZE | STRIPE, R. RR. COWL *TYPE1* | 1 | |
| 7 | 86772-K3C-D30ZC | STRIPE, L. RR. COWL *TYPE3* | 1 | |
| 7 | 86772-K3C-D30ZD | STRIPE, L. RR. COWL *TYPE2* | 1 | |
| 7 | 86772-K3C-D30ZE | STRIPE, L. RR. COWL *TYPE1* | 1 | |
| 8 | 86831-K3C-D30ZC | STRIPE, R. SIDE COVER *TYPE3* | 1 | |
| 8 | 86831-K3C-D30ZD | STRIPE, R. SIDE COVER *TYPE2* | 1 | |
| 8 | 86831-K3C-D30ZE | STRIPE, R. SIDE COVER *TYPE1* | 1 | |
| 9 | 86832-K3C-D30ZC | STRIPE, L. SIDE COVER *TYPE3* | 1 | |
| 9 | 86832-K3C-D30ZD | STRIPE, L. SIDE COVER *TYPE2* | 1 | |
| 9 | 86832-K3C-D30ZE | STRIPE, L. SIDE COVER *TYPE1* | 1 | |
