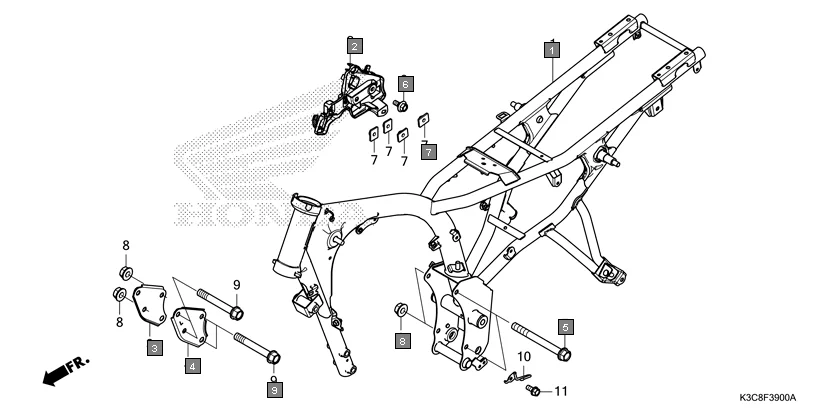

F-39 - FRAME BODY
HONDA Shine100 DX CD100RNT · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-K3C-D10 | BODY COMP., FRAME | 1 | |
| 2 | 50182-K3C-D10 | BOX, IGNITION COIL | 1 | |
| 3 | 50351-K3C-D10 | PLATE, R. FR. ENGINE HANGER | 1 | |
| 4 | 50361-K3C-D10 | PLATE, L. FR. ENGINE HANGER | 1 | |
| 5 | 90102-K3C-D10 | BOLT, FLANGE, 10X97 | 2 | |
| 6 | 90111-162-000 | BOLT, FLANGE, 6MM | 1 | |
| 7 | 90311-K0N-D80 | NUT, 6MM | 4 | |
| 8 | 94050-10000 | NUT, FLANGE, 10MM | 6 | |
| 9 | 95801-10070-00 | BOLT, FLANGE, 10X70 | 4 | |
