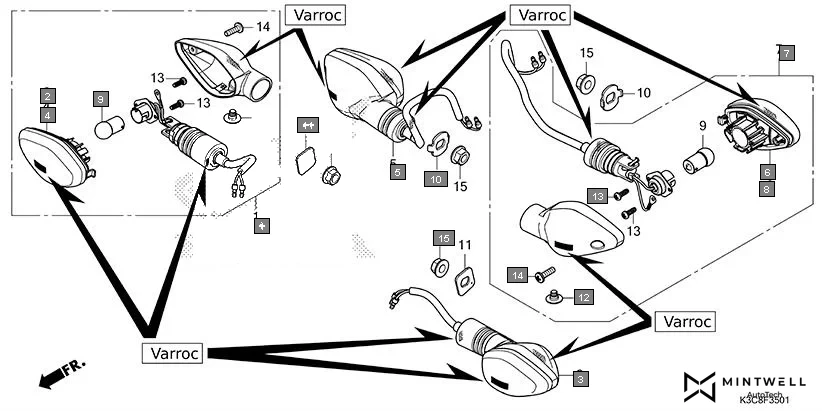

F-35-1 - WINKER(VARROC)
HONDA Shine100 DX CD100RNT · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-K3C-D41 | WINKER ASSY., R. FR.(12V 10W)(VARROC) | 1 | |
| 2 | 33403-K3C-D41 | LENS COMP., R.(VARROC) | 1 | |
| 3 | 33450-K3C-D41 | WINKER ASSY., L. FR.(12V 10W) (VARROC) | 1 | |
| 4 | 33453-K3C-D41 | LENS COMP., L.(VARROC) | 1 | |
| 5 | 33600-K3C-D41 | WINKER ASSY., R. RR.(12V 10W) (VARROC) | 1 | |
| 6 | 33603-K3C-D41 | LENS COMP., R.(VARROC) | 1 | |
| 7 | 33650-K3C-D41 | WINKER ASSY., L. RR.(12V 10W) (VARROC) | 1 | |
| 8 | 33653-K3C-D41 | LENS COMP., L.(VARROC) | 1 | |
| 9 | 34904-K23-900 | BULB, WINKER LIGHT(R10W) | 4 | |
| 10 | 61315-GGJ-700 | STAY, WINKER | 2 | |
| 11 | 61315-K14-900 | PLATE, FR. WINKER | 2 | |
| 12 | 90380-K3C-D41 | SCREW, SPECIAL, 6X8 | 4 | |
| 13 | 93901-32180 | SCREW, TAPPING, 3X8 | 8 | |
| 14 | 93901-34380 | SCREW TAPPING 4X12 | 4 | |
| 15 | 94050-10000 | NUT, FLANGE, 10MM | 4 | |
