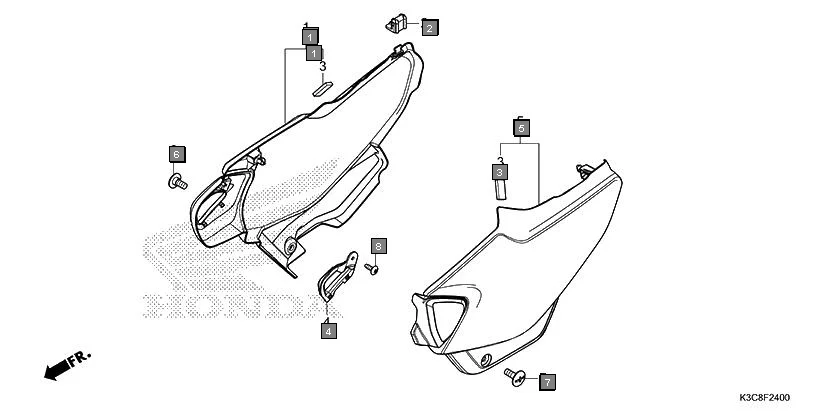

F-24 - SIDE COVER
HONDA Shine100 DX CD100RNT · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83500-K3C-D10ZA | COVER SET, R. SIDE(WL) *TYPE5* | 1 | |
| 1 | 83500-K3C-D10ZB | COVER SET, R. SIDE(WL) *TYPE4* | 1 | |
| 1 | 83500-K3C-D10ZC | COVER SET, R. SIDE(WL) *TYPE3* | 1 | |
| 1 | 83500-K3C-D10ZD | COVER SET, R. SIDE(WL) *TYPE2* | 1 | |
| 1 | 83500-K3C-D10ZE | COVER SET, R. SIDE(WL) *TYPE1* | 1 | |
| 2 | 83502-KCC-900 | GROMMET, SIDE COVER | 1 | |
| 3 | 83541-K3C-D10 | RUBBER COMP., SPONGE | 2 | |
| 4 | 83560-K3C-D10 | COVER B, R. SIDE | 1 | |
| 5 | 83600-K3C-D10ZA | COVER SET, L. SIDE(WL) *TYPE5* | 1 | |
| 5 | 83600-K3C-D10ZB | COVER SET, L. SIDE(WL) *TYPE5* | 1 | |
| 5 | 83600-K3C-D10ZD | COVER SET, L. SIDE(WL) *TYPE2* | 1 | |
| 5 | 83600-K3C-D10ZE | COVER SET, L. SIDE(WL) *TYPE1* | 1 | |
| 5 | 83600-K3C-D10ZC | COVER SET, L. SIDE | 1 | |
| 6 | 90104-KT2-000 | SCREW, SPECIAL, 6X14 | 1 | |
| 7 | 90104-KYY-900 | SCREW, SPECIAL, 6X17 | 1 | |
| 8 | 93903-24380 | SCREW TAPPING, 4 X 12 | 1 | |
