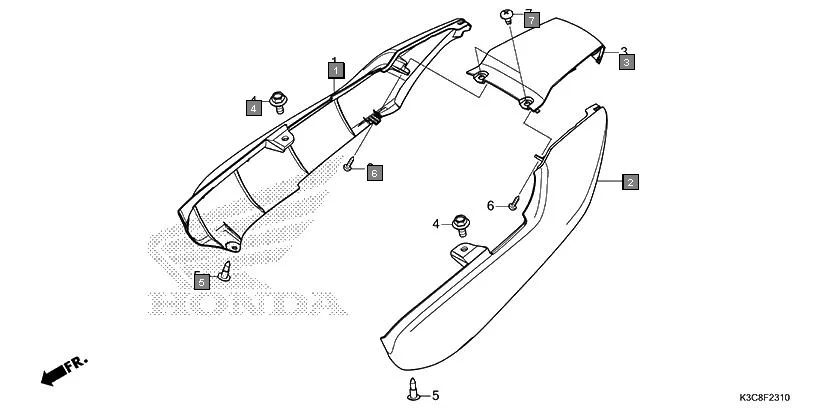

F-23-10 - REAR COWL
HONDA Shine100 DX CD100RNT · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77260-K3C-D10ZA | COWL SET, R. RR.(WL) *TYPE5* | 1 | |
| 1 | 77260-K3C-D10ZB | COWL SET, R. RR.(WL)*TYPE4* | 1 | |
| 1 | 77260-K3C-D10ZC | COWL SET, R. RR.(WL)*TYPE3* | 1 | |
| 1 | 77260-K3C-D10ZD | COWL SET, R. RR.(WL) | 1 | |
| 1 | 77260-K3C-D10ZE | COWL SET, R. RR.(WL) *TYPE1* | 1 | |
| 2 | 77270-K3C-D10ZA | COWL SET, L. RR.(WL) *TYPE5* | 1 | |
| 2 | 77270-K3C-D10ZB | COWL SET, L. RR.(WL) *TYPE4* | 1 | |
| 2 | 77270-K3C-D10ZC | COWL SET, L. RR.(WL) *TYPE3* | 1 | |
| 2 | 77270-K3C-D10ZD | COWL SET, L. RR.(WL) *TYPE2* | 1 | |
| 2 | 77270-K3C-D10ZE | COWL SET, L. RR.(WL) *TYPE1* | 1 | |
| 3 | 77280-K3C-D10ZE | COWL SET, RR. CENTER(WL)*TYPE1* | 1 | |
| 4 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 5 | 90116-SP0-003 | CLIP, BUMPER SEAL | 2 | |
| 6 | 93903-24380 | SCREW TAPPING, 4 X 12 | 2 | |
| 7 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
