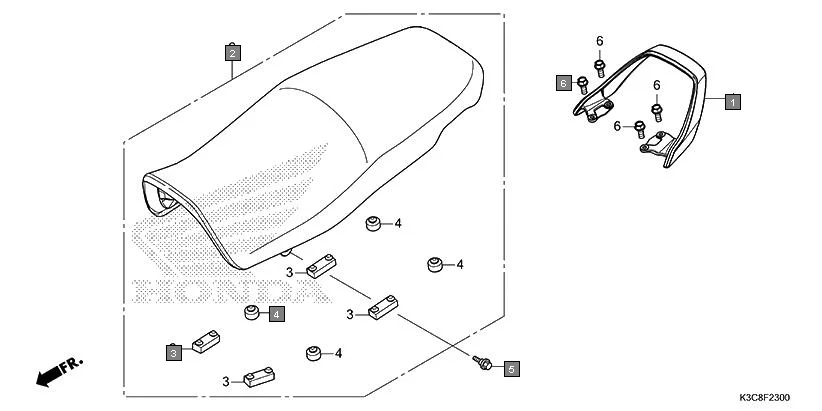

F-23 - SEAT
HONDA Shine100 DX CD100RNT · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K3C-D10 | GRIP, RR | 1 | |
| 2 | 77200-K3C-D11ZA | SEAT ASSY., DOUBLE *TYPE1* | 1 | |
| 3 | 77205-286-000 | RUBBER `B SEAT SETTING | 4 | |
| 4 | 77206-KTE-910 | RUBBER, SEAT SETTING | 4 | |
| 6 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
