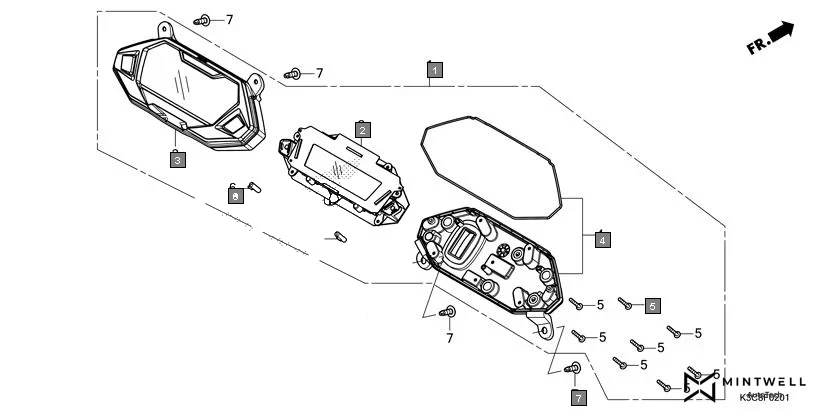

F-2-1 - METER(CD100RNT)
HONDA Shine100 DX CD100RNT · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-K3C-D31 | METER ASSY., COMBINATION(KPH) | 1 | |
| 2 | 37101-K3C-D31 | METER COMP., LCD(KPH) | 1 | |
| 3 | 37102-K1C-A81 | CASE COMP., UPPER | 1 | |
| 4 | 37103-K0N-DA1 | CASE COMP., UNDER | 1 | |
| 5 | 37104-K0N-DU1 | SCREW, TAPPING, 3X16 | 8 | |
| 6 | 37202-K0N-D01 | KEY, TOP | 2 | |
| 7 | 93903-35310 | SCREW TAPPING 5X16 | 4 | |
